  11. SLLD21, 500 lbs Force, Swing Clamp, Double-Acting, Left Turning, Lower Flange
Shop All Swing Cylinders
Enerpac

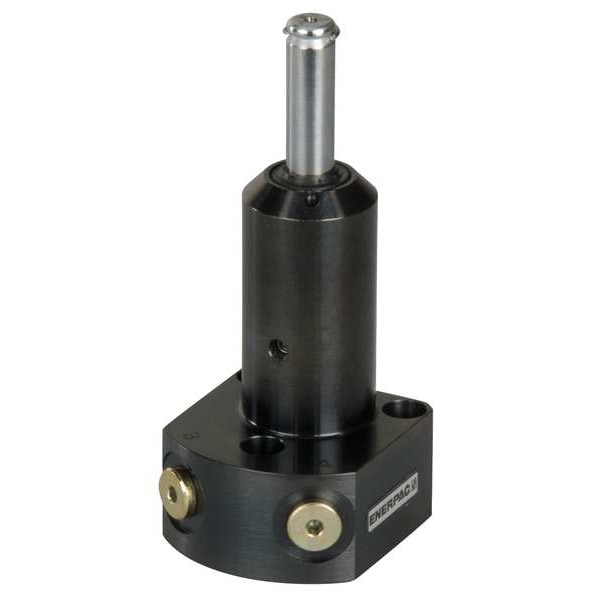

SLLD21, 500 lbs Force, Swing Clamp, Double-Acting, Left Turning, Lower Flange

product price: $656.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Single Acting/Double Acting Double Acting
  • Clamping Force 500 lb
  • Total Stroke 0.65 in
  • Clamping Stroke 0.32 in
See all product information

Product Information

Dimensions

Bolt Size #10-32
Outside Dia. 1.1 in
Extended Height 4.41 in
Mounting Hole Dia. 0.225 in
Min. Hole Depth 0.63 in
Port Size #2 SAE

Description

Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 500 lb, Total Stroke 0.65 in, Effective Area Clamped 0.12 sq in, Clamping Stroke 0.32 in, Max. Pressure 5,000 psi, Series SLL, Swing Angle 90 Degrees , Port Size #2 SAE, Effective Area Unclamped 0.24 sq in, Oil Capacity Clamped 0.08 cu in, Oil Capacity Unclamped 0.15 cu in, Max. Oil Flow 12 cu in/min, Pressure Range 500 to 5000 psi
