  11. RC502, 55.2 ton Capacity, 2.00 in Stroke, General Purpose Hydraulic Cylinder
Shop All Single Acting Hydraulic Cylinders
Enerpac

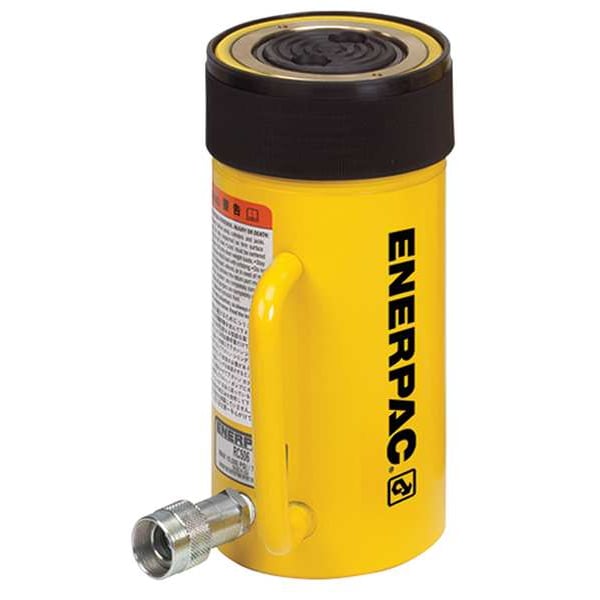

RC502, 55.2 ton Capacity, 2.00 in Stroke, General Purpose Hydraulic Cylinder

product price: $1,827.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Max. Pressure 10,000 psi
  • Bolt Circle Dia. 3.75"
  • Includes Coupler, Dust Cap
  • Plunger Dia. 3.13 in
See all product information

Product Information

Dimensions

Bolt Circle Dia. 3.75"
Plunger Dia. 3.13 in
Center Hole Dia. 3 1/8 in
Stroke Length 2 in
Thread Size 1/2"-13
Extended Height 8.94 in
Retracted Height 6.94 in
Outside Dia. 5 in
Base Bolt Circle Dia. 3.75 in
Nominal Stroke Length 2 in
Collar Thread Size 5"-12

Description

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 50 ton, Max. Push Capacity 50 ton, Stroke Length 2 in, Nominal Stroke Length 2 in, Effective Push Area 11.04 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 22.09 cu in, Retracted Height 6.94 in, Extended Height 8.94 in, Outside Dia. 5 in, Plunger Dia. 3.13 in, Base Bolt Circle Dia. 3.75 in, Center Hole Dia. 3 1/8 in, Series RC, Includes Coupler, Dust Cap
