  11. RC1514, 15.7 ton Capacity, 14.00 in Stroke, General Purpose Hydraulic Cylinder
Shop All Single Acting Hydraulic Cylinders
Enerpac

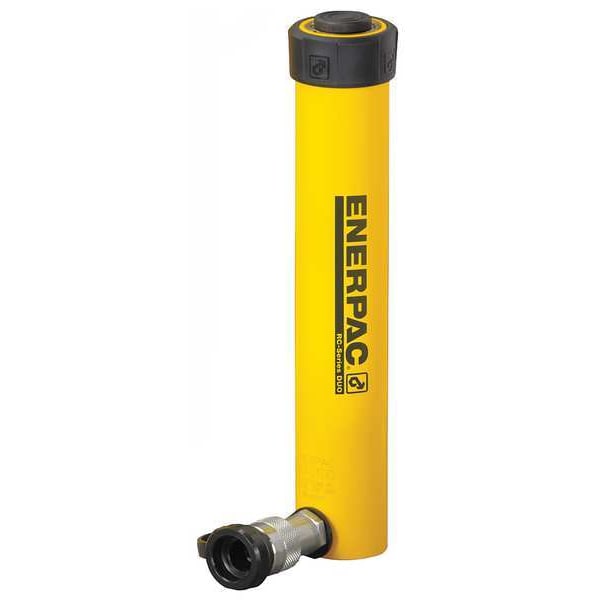

RC1514, 15.7 ton Capacity, 14.00 in Stroke, General Purpose Hydraulic Cylinder

product price: $1,711.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Cylinder Type General Purpose
  • Weight Capacity 15 tons
  • Plunger Thread Size 1"-8
  • Stroke Length 14 in
See all product information

Product Information

Dimensions

Plunger Thread Size 1"-8
Stroke Length 14 in
Bolt Circle Dia. 1.88"
Plunger Dia. 2 in
Center Hole Dia. 1 5/8 in
Collar Thread Size 2-1/4"-16
Outside Dia. 2.75 in
Extended Height 32.69 in
Retracted Height 18.69 in
Thread Size 3/8"-2
Base Bolt Circle Dia. 1.88 in
Nominal Stroke Length 14 in

Description

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 15 ton, Max. Push Capacity 15 ton, Stroke Length 14 in, Nominal Stroke Length 14 in, Effective Push Area 3.14 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 43.98 cu in, Retracted Height 18.69 in, Extended Height 32.69 in, Outside Dia. 2.75 in, Plunger Dia. 2 in, Plunger Thread Size 1 In.-8, Collar Thread Size 2-1/4 In.-16, Base Bolt Circle Dia. 1.88 in, Center Hole Dia. 1 5/8 in, Series RC, Includes Coupler, Dust Cap
