Shop All Single Acting Hydraulic Cylinders
Enerpac

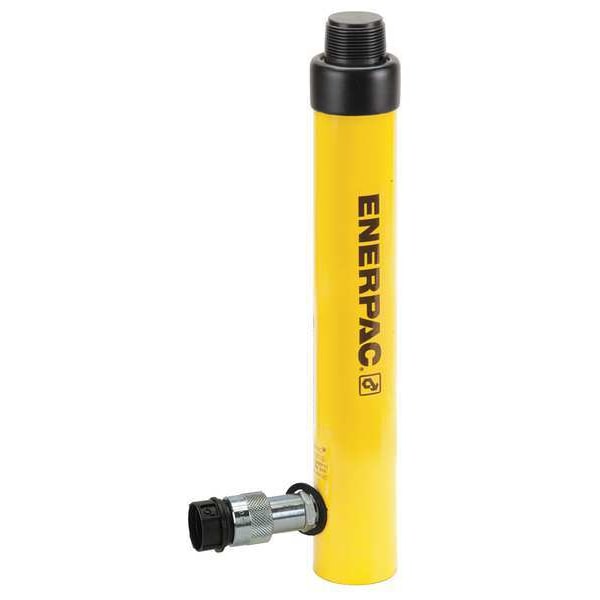

RA1010, 10 TON S/A CYLINDER

product price: $1,088.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Weight Capacity 10 tons
  • Center Hole Dia. 1 1/4 in
  • Single Acting/Double Acting Single Acting
  • Bolt Circle Dia. 6.3"
See all product information

Product Information

Dimensions

Center Hole Dia. 1 1/4 in
Bolt Circle Dia. 6.3"
Stroke Length 10 1/8 in
Plunger Dia. 1.25 in
Outside Dia. 2.25 in
Retracted Height 15.88 in
Extended Height 26 in
Plunger Thread Size 1-1/4"-12
Base Bolt Circle Dia. 6.3 in
Nominal Stroke Length 10 in

Description

Hydraulic Ram, Single Acting, General Purpose, Aluminum, Nominal Capacity 10 ton, Max. Push Capacity 10 ton, Stroke Length 10 1/8 in, Nominal Stroke Length 10 in, Effective Push Area 2.23 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 22.61 cu in, Retracted Height 15.88 in, Extended Height 26 in, Outside Dia. 2.25 in, Plunger Dia. 1.25 in, Plunger Thread Size 1-1/4 In.-12, Base Bolt Circle Dia. 6.3 in, Center Hole Dia. 1 1/4 in, Series RA, Includes Coupler, Dust Cap
