Shop All Threaded Body Cylinders
Enerpac

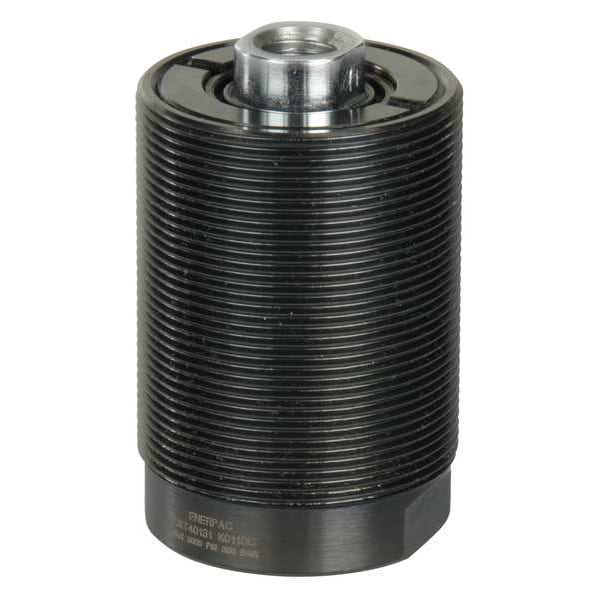

CST40131, 8800 lbs Capacity, 0.58 in Stroke, Single-Acting, Threaded Body, Hydraulic Cylinder
Mfr # CST40131
Zoro # G1571385
Free Shipping & Returns
$284.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Promotion Restriction Not eligible for promotion
- Single Acting/Double Acting Single Acting
- Push Capacity @ 5000 psi 8,800 lb
- Stroke Length 1/2 in
- Retracted Height 2.94 in
Product Information
- Brand Enerpac
- MFR # CST40131
- Zoro # G1571385
- UPC # 662005133451
- Country of Origin United States
- Category Threaded Body Cylinders
Dimensions
Stroke Length | 1/2 in |
Retracted Height | 2.94 in |
Extended Height | 3.52 in |
Outside Dia. | 1.625 in |
Plunger Thread Size | 1/2"-13 |
Details
Promotion Restriction | Not eligible for promotion |
Single Acting/Double Acting | Single Acting |
Push Capacity @ 5000 psi | 8,800 lb |
Body Thread | 1-7/8"-16 |
Pressure Range | 580 to 5000 psi |
Plunger Thread | 1/2"-13 UN |
Capacity @ 5000 PSI | 8800 lb. |
Type | Threaded Body |
Effective Area Push | 1.76 sq. in. |
Seal Material | Polyurethane/Buna N |
Item | Threaded Body Hydraulic Cylinder |
Stroke | 0.51" |
Material of Construction | Steel |
Function | Single Acting |
Oil Capacity Push | 0.9 cu in |
Cylinder Type | Threaded Body |
Body Material | Steel |
Effective Push Area | 1.76 sq in |
Mounting Style | Threaded Body |
Description
Threaded Body Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 8,800 lb, Stroke Length 1/2 in, Effective Push Area 1.76 sq in, Oil Capacity Push 0.9 cu in, Pressure Range 580 to 5000 psi, Extended Height 3.52 in, Retracted Height 2.94 in, Body Thread 1-7/8 In.-16, Plunger Thread Size 1/2 In.-13, Outside Dia. 1.625 in, Seal Material Polyurethane/Buna N
