Edwards Signaling

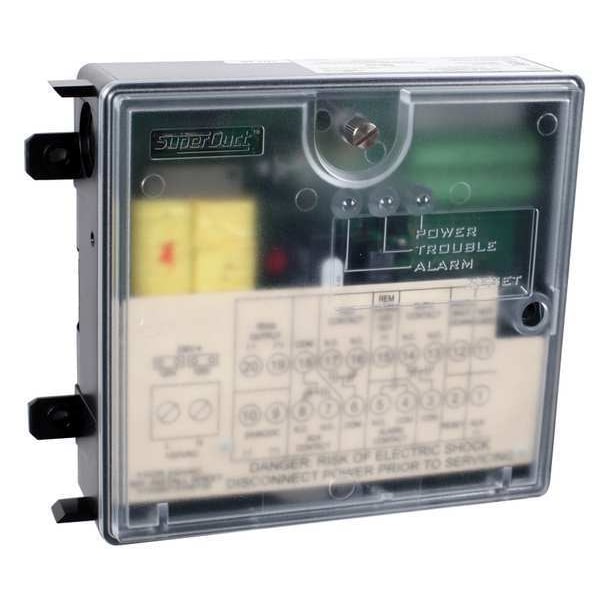

Duct Smoke Detector Controller

product price: $100.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Surface
  • Depth (In.) 1 7/8 in
  • Length (In.) 5 13/16 in
  • Overall Height 5 7/16 in
  • Height (In.) 5 7/16 in
See all product information

Product Information

Dimensions

Depth (In.) 1 7/8 in
Length (In.) 5 13/16 in
Overall Height 5 7/16 in
Height (In.) 5 7/16 in
Depth 1 7/8 in
Length 5 13/16 in

Details

Item Duct Smoke Detector Controller
Mounting Surface
Alarm Current 124.3mA @ 24Vdc; 74mA @ 120Vac; 32mA @ 220Vac
Standards CSFM, UL, ULC
Alarm Aux. Contact @ 250V 10 A
For Use With SD-ST
Ambient Temp. Limits (F) -4 Degrees to 158 Degrees F
Standby Current (uA) 77.9mA @ 24Vdc; 79mA @ 120Vac; 34.5mA @ 220Vac
Alarm Aux. Contact @ 30VDC 10 A
Voltage 120V AC, 220V AC, 24V AC/24V DC
Mount Type Surface

Description

Duct Smoke Detector Controller, Surface Mounting, Alarm Current 124.3mA @ 24Vdc; 74mA @ 120Vac; 32mA @ 220Vac, Standby Current (uA) 77.9mA @ 24Vdc; 79mA @ 120Vac; 34.5mA @ 220Vac, Depth (In.) 1 7/8 in, Height (In.) 5 7/16 in, Length (In.) 5 13/16 in, Ambient Temp. Limits (F) -4 Degrees to 158 Degrees F, Alarm Aux. Contact @ 250V 10 A, Alarm Aux. Contact @ 30VDC 10 A, Voltage 120V AC, 220V AC, 24V AC/24V DC, Standards CSFM, UL, ULC, For Use With SD-ST
