Shop All Level Sensors
Echobeam

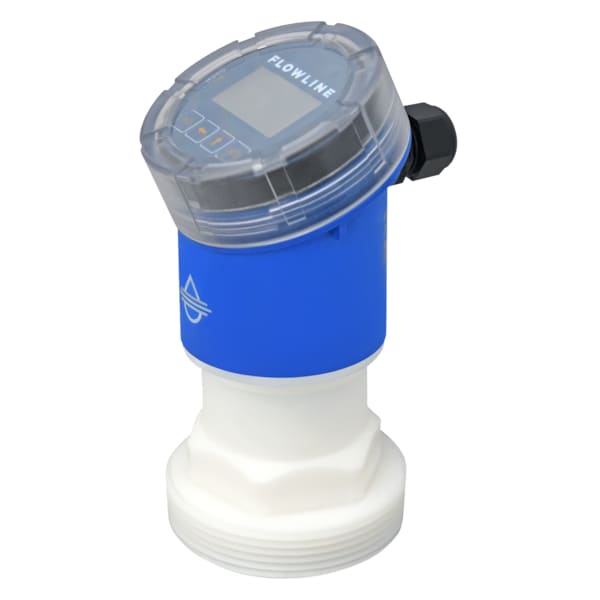

Noncontact Level Sensor, 80 GHz, 30V DC
Mfr # LR85-0300
Zoro # G010981877
product price: $1,294.99
/ea
Free Shipping & Returns
$1,294.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Range 196.8 ft
- Accuracy +/-2 mm
- Dead Band 0 in
- Standards CE, cCSAus, FCC
- Beam Width 3 1/2 in
Product Information
- Brand Echobeam
- MFR # LR85-0300
- Zoro # G010981877
- Country of Origin India
- Category Level Sensors
Dimensions
Beam Width | 3 1/2 in |
Connection Size | 3 in |
Antenna Diameter | 3 in |
Details
Item | Noncontact Level Sensor |
Range | 196.8 ft |
Accuracy | +/-2 mm |
Dead Band | 0 in |
Standards | CE, cCSAus, FCC |
Enclosure Material | PBT-FR |
Output Voltage Range | 4 to 20mA |
Connection Type | NPT |
Operating Frequency | 80 GHz |
Enclosure Rating | IP66, IP67, NEMA 4X |
Beam Angle | 4 Degrees |
Operating Pressure - Maximum | 43.5 psi |
Display Type | LCD |
Media Temperature - Minimum | -40 Degrees F |
For Media Type | Aggregate Solids, Grain Powder, Pellets, Petroleum, Water |
Output Wire Configuration | 2-Wire |
Media Temperature - Maximum | 248 Degrees F |
Spatial Resolution | 0.079 in |
Voltage - Maximum | 30V DC |
Description
Noncontact Level Sensor, For Media Type Aggregate Solids, Grain Powder, Pellets, Petroleum, Water, Antenna Diameter 3 in, Range 196.8 ft, Connection Size 3 in, Connection Type NPT, Accuracy +/-2 mm, Voltage - Maximum 30V DC, Dead Band 0 in, Beam Angle 4 Degrees , Operating Frequency 80 GHz, Spatial Resolution 0.079 in, Beam Width 3 1/2 in, Operating Pressure - Maximum 43.5 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 248 Degrees F, Output Wire Configuration 2-Wire
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
- *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
