Echobeam

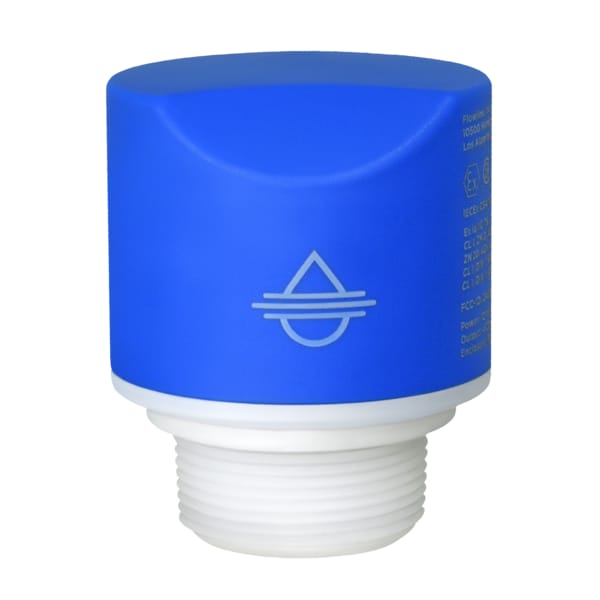

Noncontact Level Sensor, 80 GHz, 30V DC

product price: $1,244.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Range 98.4 ft
  • Accuracy +/-2 mm
  • Enclosure Rating IP68
  • Dead Band 0 in
  • Connection Size 1 1/2 in
See all product information

Product Information

Dimensions

Connection Size 1 1/2 in
Beam Width 1 57/64 in
Antenna Diameter 1 1/2 in

Details

Item Noncontact Level Sensor
Range 98.4 ft
Accuracy +/-2 mm
Enclosure Rating IP68
Dead Band 0 in
Enclosure Material PVDF
Beam Angle 8 Degrees
Connection Type NPT
Standards CE, cCSAus, FCC
Operating Frequency 80 GHz
Spatial Resolution 0.079 in
Display Type None
Media Temperature - Minimum -40 Degrees F
Operating Pressure - Maximum 43.5 psi
Media Temperature - Maximum 176 Degrees F
Output Wire Configuration 4-Wire
Voltage - Maximum 30V DC
For Media Type Aggregate Solids, Grain Powder, Pellets, Petroleum, Water
Output Voltage Range Modbus

Description

Noncontact Level Sensor, For Media Type Aggregate Solids, Grain Powder, Pellets, Petroleum, Water, Antenna Diameter 1 1/2 in, Range 98.4 ft, Connection Size 1 1/2 in, Connection Type NPT, Accuracy +/-2 mm, Voltage - Maximum 30V DC, Dead Band 0 in, Beam Angle 8 Degrees , Operating Frequency 80 GHz, Spatial Resolution 0.079 in, Beam Width 1 57/64 in, Operating Pressure - Maximum 43.5 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 176 Degrees F

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
