Shop All Level Sensors
Echobeam

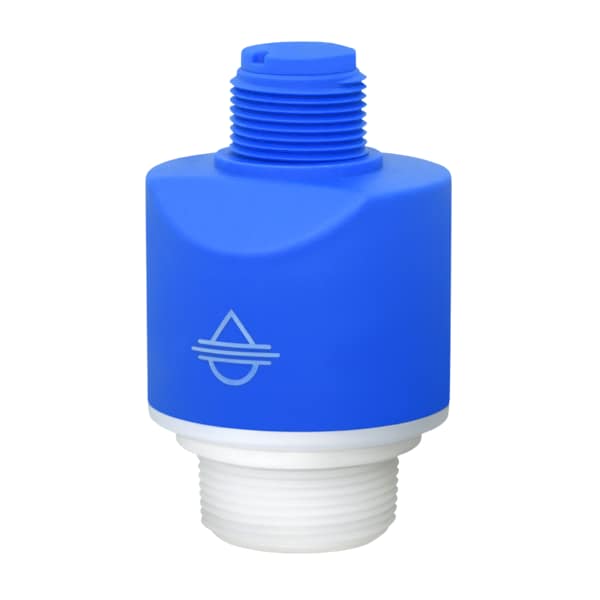

Noncontact Level Sensor, 80 GHz, 30V DC

product price: $1,250.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Range 98.4 ft
  • Accuracy +/-2 mm
  • Enclosure Material PVDF
  • Operating Frequency 80 GHz
  • Beam Width 1 57/64 in
See all product information

Product Information

Dimensions

Beam Width 1 57/64 in
Connection Size 1 1/2 in
Antenna Diameter 1 1/2 in

Details

Item Noncontact Level Sensor
Range 98.4 ft
Accuracy +/-2 mm
Enclosure Material PVDF
Operating Frequency 80 GHz
Standards CE, cCSAus, FCC
Beam Angle 8 Degrees
Enclosure Rating IP68
Dead Band 0 in
Gasket Material Viton
Voltage - Maximum 30V DC
Display Type None
Media Temperature - Maximum 176 Degrees F
Media Temperature - Minimum -40 Degrees F
For Media Type Aggregate Solids, Grain Powder, Pellets, Petroleum, Water
Output Wire Configuration 3-Wire
Operating Pressure - Maximum 43.5 psi
Spatial Resolution 0.079 in
Output Voltage Range SDI-12
Connection Type G

Description

Noncontact Level Sensor, For Media Type Aggregate Solids, Grain Powder, Pellets, Petroleum, Water, Antenna Diameter 1 1/2 in, Range 98.4 ft, Connection Size 1 1/2 in, Connection Type G, Accuracy +/-2 mm, Voltage - Maximum 30V DC, Dead Band 0 in, Beam Angle 8 Degrees , Operating Frequency 80 GHz, Spatial Resolution 0.079 in, Beam Width 1 57/64 in, Operating Pressure - Maximum 43.5 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 176 Degrees F

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
