Shop All Vacuum Switches
Dwyer Instruments

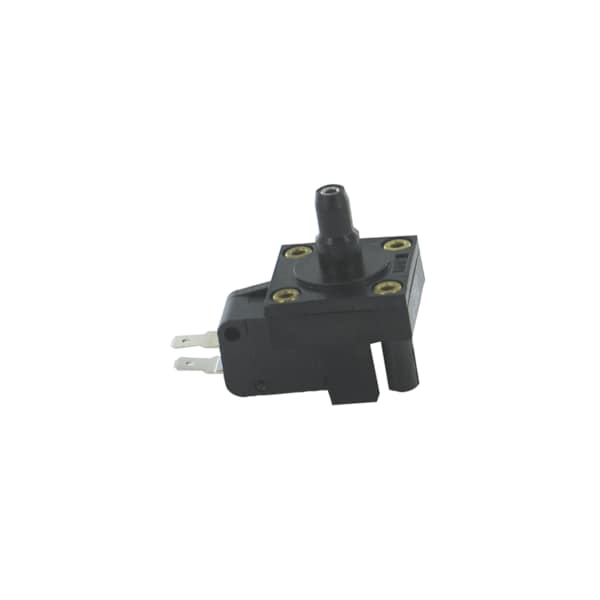

Mini Vaccuum Switch, Vac Sw 980 In 18 Port
Mfr # MVS-5
Zoro # G707149153
product price: $29.79
/ea
$29.79
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Electrical Connections Terminals - 0.187" x 0.20: spade for use with quick disconnects.
- Mounting Use #2 screws through eyelets.
- Switch Type SPDT normally open or normally closed.
- Wetted Materials Housing: polycarbonate; Diaphragm: polyurethane.
- Repeatability ±20%.
Product Information
- Brand Dwyer Instruments
- MFR # MVS-5
- Zoro # G707149153
- Country of Origin United States
- Category Vacuum Switches
Details
Electrical Connections | Terminals - 0.187" x 0.20: spade for use with quick disconnects. |
Mounting | Use #2 screws through eyelets. |
Switch Type | SPDT normally open or normally closed. |
Wetted Materials | Housing: polycarbonate; Diaphragm: polyurethane. |
Repeatability | ±20%. |
Process Connections | Models MVS-1 to MVS-3: Smooth port 0.25" diameter; Models MVS-4 to MVS-6: 1/8" male NPT. |
Temperature Limits | 40 to 150°F (4 to 66°C). |
Electrical Rating | Range 3 to 8" w.c.: 3 A, 125/250 VAC; Range 9 to 80" w.c.: 10 A, 125/250 VAC; Range 81 to 330" w.c.: 15 A, 125/250 VAC. |
Agency Approvals | cULus. |
Service | Air or compatible fluids on "high side". |
Pressure Limits | Up to maximum range. |
Description
Miniature vacuum switch, min. set point 9" w.c. (21 mbar), max. set point 80" w.c. (199 mbar), 1/8" male NPT process connection.
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
