Shop All Pressure Transducers
Dwyer Instruments

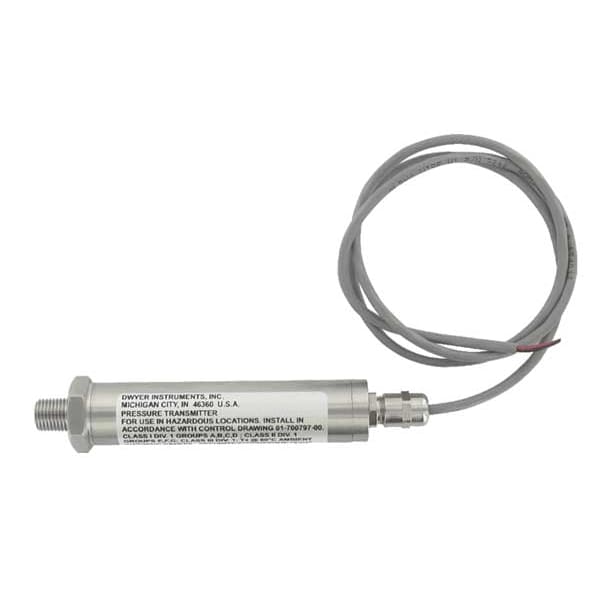

Intrinsically Safe Transducer, 0to150 psi
Mfr # IS626-11-GH-P1-E1-S1
Zoro # G0059437
product price: $445.99
/ea
Free Shipping & Returns
$445.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Range 0 to 150 psi
- Safety Rating Class I Div. 1 Group A, B, C, D; Class II Div. 1 Group E, F, G; Class III Div. 1
- Includes Instructions
- Process Connection 1/4" NPT
- Features Protection in Harsh Environments, Robust Sensor Provides Shock and Vibration Resistance
Product Information
- Brand Dwyer Instruments
- MFR # IS626-11-GH-P1-E1-S1
- Zoro # G0059437
- UPC # 00094705884232
- Country of Origin United States
- Category Pressure Transducers
Dimensions
| Lead Length (In.) | 36 |
| Manufacturers Warranty Length | 1 yr |
| Cable Length | 3 ft |
| Process Connection Size | 1/4 in |
| Overall Height | 5.656 in |
| Overall Width | 1 in |
| Overall Length | 1 in |
Description
Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 150 psi, Electrical Connections Cable & Wire Leads, Output 4 to 20mA DC, Accuracy +/-0.25 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 28V DC, NEMA Rating NEMA 4X, IP Rating IP66, Series IS626, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature 0 Degrees F
