De-Sta-Co

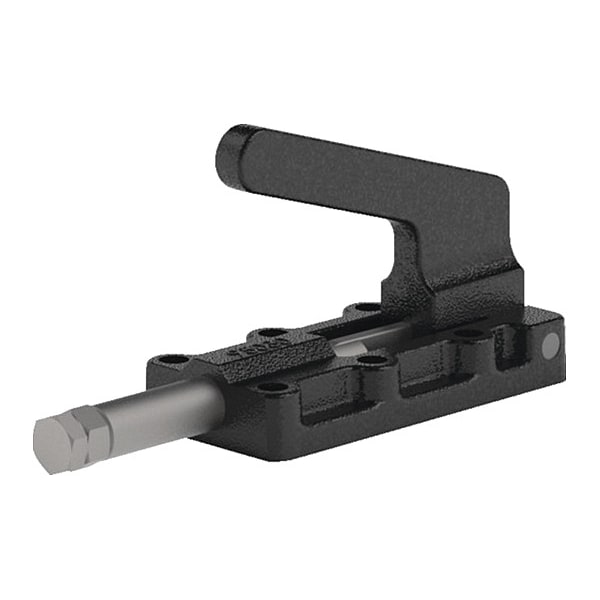

Straight-Line Action Clamp

product price: $122.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application Metalworking, Welding, Assembly And Light Machining Fixture
  • Base Mounting Style Flange
  • Handle Orientation Horizontal
  • Plunger Height 0.3 in
  • Includes Locking Handle No
See all product information

Product Information

Dimensions

Plunger Height 0.3 in
Arm Length 0.98 in
Overall Width 1.4 in
Spindle Thread Size M6
Height Under Arm 0.3 in
Overall Length 4.17 in
Overall Depth 2.28 in
Fastener Thread Size 3/16 in
Tip Diameter 7/16 in

Description

Straight-Line Action Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 550 lbf, Plunger Travel 0.98 in, Plunger Height 0.3 in, Plunger Thread M6, Includes Spindle No, Application Metalworking, Welding, Assembly And Light Machining Fixture, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 0.98 in, Body Material Steel, Clamping Force 550 lb, Fastener Thread Size 3/16 in, Handle Color Black
