Shop All Straight Line Clamps
De-Sta-Co

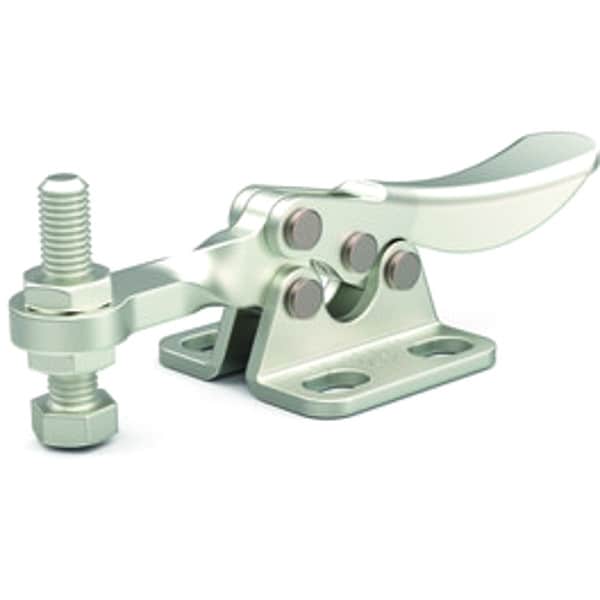

Horizontal Handle Toggle Clamp, 75 lb Cap

product price: $25.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Holding Capacity (Lb.) 75
  • Thread Size #8-32
  • Overall Height (In.) 0.67
  • Overall Length (In.) 2.85
  • Base Mounting Centers (In.) .62 x .62
See all product information

Product Information

Dimensions

Thread Size #8-32
Overall Height (In.) 0.67
Overall Length (In.) 2.85
Height Under Arm (In.) 0.3
Overall Height 0.6700 in
Overall Length 2.85 in
Height Under Arm 0.35 in
Overall Width 0.93 in
Tip Diameter 0.17 in
Arm Length 0.89 in
Overall Depth 0.67 in
Fastener Thread Size #8-32

Description

Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Holding Capacity - Maximum 75 lbf, Arm Style Solid Bar, Tip Material Stainless Steel, Arm Length 0.89 in, Height Under Arm 0.35 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Closures, Food Processing, Machining, Welding, Wood Working, Body Material Stainless Steel, Fastener Thread Size #8-32, Mounting Holes Center to Center - Long Side 0.62 in
