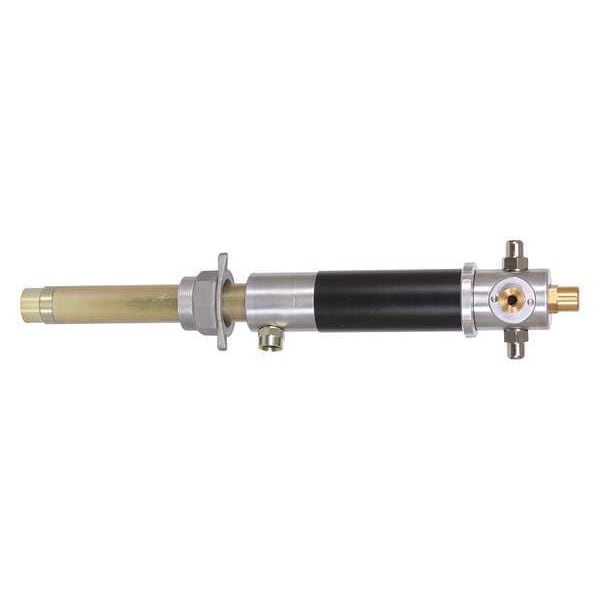

Stub Pump, Air Operated, 3/4 In FNPT

Mfr # 33NT24
Zoro # G9785081

$404.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Action Type Reciprocating Action
For Media Type Automatic Transmission Fluid, Motor Oil
For Container Size 5 gal, 15 gal, 30 gal, 55 gal, 275 gal
Max. Flow Rate 4.8 gpm
Max. Viscosity 1,750 cps

See all product information

Product Information

Brand Dayton
MFR # 33NT24
Zoro # G9785081
UPC #
190735261422
Country of Origin India
Category Hand Drum Pumps

Dimensions

For Container Size	5 gal, 15 gal, 30 gal, 55 gal, 275 gal
Air Inlet Size	1/4 in FNPT
Manufacturers Warranty Length	1 yr.
Discharge Size FPT (In.)	3/4
Outlet Size	3/4" FNPT
Height	2-1/2"
Inlet Size	1"
Air Outlet Size	1 3/8 in

Details

Action Type	Reciprocating Action
For Media Type	Automatic Transmission Fluid, Motor Oil
Max. Flow Rate	4.8 gpm
Max. Viscosity	1,750 cps
Wetted Materials	Aluminum, Brass, Buna-N, Polyurethane, Steel, Turcite
Max. Fluid Temp.	140 Degrees F
Includes	Stub Pump with Bung Adaptor, Check Valve, Nipple for Connecting Air Filter
Metered	No
Includes Suction Tube	No
Diesel Exhaust Fluid Compatible	No
Item	Air Operated Drum Pump
Max. Air Inlet (PSI)	145
Adapter Type	Sliding Bung with 2" Drum Thread
Discharge Tubing Material	Steel
Ratio	5:1
GPM	4.76
Max. GPM for Oil	4.76
Motor Type	Air Operated
Motor Enclosure	Motor Housing
DEF Compatible	No
Max. Pressure	145
Max. Liquid Temp.	140 Degrees F
Delivers	1750 cps
Max. Flow GPM	4.76 gpm
For Use With	High Viscosity Oils (Up to SAE 240 Oils) for Dispensing Up to 50 Meters Away
Max. Head	26 ft.
Type	Air Operated, 5:1 Oil Ratio
Cylinder Material	Aluminum, Steel
Seal Material	Buna-N, Polyurethane, Turcite
Self-Priming	Yes
Adapter Material	Aluminum, Zinc
Housing Material	Steel, Aluminum, Brass
Includes Bung Adapter	Yes
Includes Spout	No
Discharge Connection Type	FNPT
Min. Air Pressure	30 psi
Includes Nozzle	No
Not Recommended Chemicals	Antifreeze (Coolant), Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Lithium Grease, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
Power Source	Air
Compatible Chemicals	Automatic Transmission Fluid, Motor Oil
Max. Air Pressure	150 psi
Max. Oil Flow	4.76 gpm
For Container Type	Drum, Pail, Tote
Includes Discharge Hose	No
Housing Material - Pumps	Aluminum, Brass, Steel
Grease	NT
Gear Lube	NT
Max. Head - Pumps	26 ft
Max. Outlet Pressure	750 psi

Description

Air Operated Drum Pump, Max. Air Pressure 150 psi, Self-Priming Yes, Discharge Connection Type FNPT, Air Outlet Size 1 3/8 in, Includes Discharge Hose No, Motor Enclosure Motor Housing, Max. Viscosity 1,750 cps, Includes Suction Tube No, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout No, Adapter Material Aluminum, Zinc
