Shop All Pillow Block Bearings
Dayton

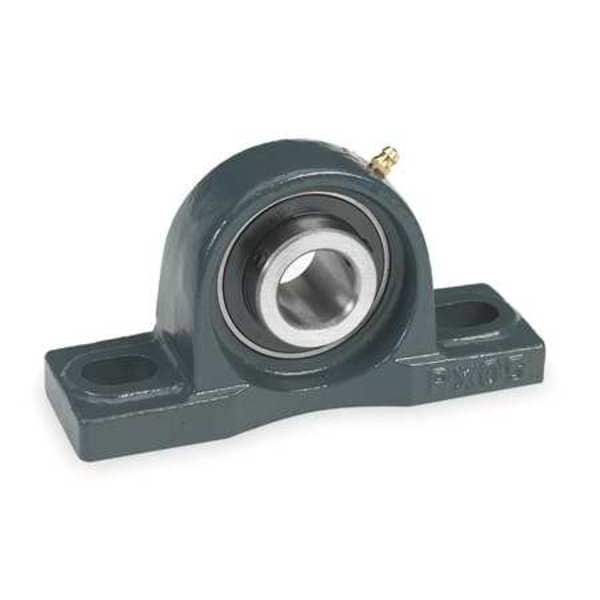

Pillow Block Bearing, Ball, 2" Bore
Mfr # 3FDD1
Zoro # G1137683
original price:
$163.14
7% off
new price: $150.99
/ea
Free Shipping & Returns
$150.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bearing Insert Type Radial Ball
- Shaft Locking Type Set Screws
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material Alloy Steel
- Bolt Hole Center-to-Center 7 1/4 in
Product Information
- Brand Dayton
- MFR # 3FDD1
- Zoro # G1137683
- UPC # 190735283400
- Country of Origin China
- Category Pillow Block Bearings
Dimensions
| Bore Dia. | 2 in |
| Bolt Size | 3/4 in |
| Dimension J | 3/4 in |
| Overall Length | 10.25 in |
| Overall Width | 3.125 in |
| Dimension G | 2 5/8 in |
| Dimension A | 2 3/4 in |
| Dimension L | 3 1/8 in |
| Dimension D | 10 1/4 in |
| Dimension H | 1 3/32 in |
| Dimension C | 9-1/2" |
| Overall Height | 5.468 in |
| Dimension E | 7 1/4 in |
| Dimension B | 5 15/32 in |
| Center Height | 2.75 in |
| Mounting Bolt Size | 3/4 in |
| Mount Hole Center-to-Center Length | 7.25 in |
| Bore Diameter | 2 in |
Description
Pillow Block Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 in, Bore Type Cylindrical, Center Height 2.75 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NGLI #2 Equivalent, Maximum Temperature 200 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Length 7.25 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 5.468 in, Overall Length 10.25 in, Overall Width 3.125 in
