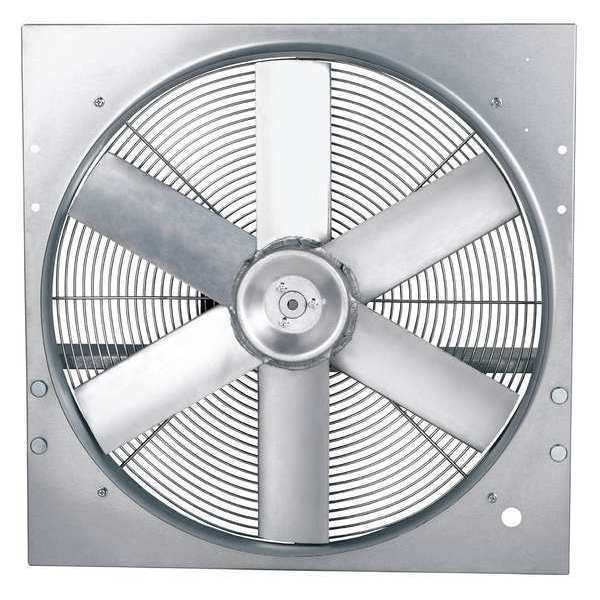

Exhaust Fan, 24 In, 5438 CFM

Mfr # 10D970
Zoro # G4048344

$812.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Max. Depth (In.) 9 3/4 in
Max. Ambient Temp. (F) 104 Degrees F
CFM @ 0.250-In. SP 5,216 cfm
Number of Blades 6
Agency Compliance UL and cUL Listed, AMCA

See all product information

Product Information

Brand Dayton
MFR # 10D970
Zoro # G4048344
UPC #
190735108956
Country of Origin China
Category Exhaust and Supply Fan Accessories

Dimensions

Max. Depth (In.)	9 3/4 in
Venturi Depth (In.)	3 3/8 in
Dimension A (In.)	28 in
Width (In.)	28 in
Venturi Clearance Dia. (In.)	24 3/8 in
Outside Dia. (In.)	28 in
Blade Dia.	24 in
Inside Dia. (In.)	24 3/8 in
Flange Width (In.)	1 in
Dimension D (In.)	24 1/2 in
Height (In.)	28 in
Dimension B (In.)	7 1/2 in
Dimension C (In.)	2 1/4 in
Overall Width	28 in
Overall Height	28 in
Flange Width	1 in
Venturi Depth	3 1/2 in
Venturi Diameter	24 1/2 in
Blade Diameter	24 in
For Cut-Out Diameter	24 1/2 in
Duct Diameter	24 1/2 in
Overall Diameter	28 in
Overall Depth	9 3/4 in

Details

Item	Exhaust Fan
Max. Ambient Temp. (F)	104 Degrees F
CFM @ 0.250-In. SP	5,216 cfm
Number of Blades	6
Agency Compliance	UL and cUL Listed, AMCA
Phase	1
CFM @ 0.125-In. SP	5,767 cfm
Fiberglass Wall Shutter No.	5C215
Speed Control	No
Propeller Material	Aluminum
Exhaust/Supply Fan Item	Exhaust Fan
Wire Guard Finish	Zinc Plated
Drive Package Included	No
CFM @ 0.375-In. SP	4,558 cfm
Watts	373 W
Full Load Amps	5.4/2.8
Hz	60
CFM @ 0.500-In. SP	3,223 cfm
Type	Heavy Duty Direct Drive
Motor Enclosure	Totally Enclosed Air Over
Sones @ 0.000-In. SP @ 5 Ft.	21
Guard Material	Steel
Sones @ 0.125-In. SP @ 5 Ft.	16.3
Motor Insulation	Class B
Voltage	115/230
Motor RPM	1,134 RPM
Aluminum Wall Shutter No.	3C308
Galvanized Wall Shutter No.	1C746
Mounting Position	Vertical
Frame Finish	Galvanized
Exhaust/Supply Fan Motor HP	1/2 hp
Frame Material	Steel
For Use With	General Ventilation Applications
CFM @ 0.000-In. SP	6,254 cfm
Fan Voltage	115/230V AC
Bearing Type	Ball
Standards	AMCA, UL and cUL Listed
Blade Material	Aluminum
Noise Level @ 0.125 in SP @ 5 ft	16 sones
Method of Construction	Stamped
Drive Type	Direct Drive
Includes Motor	Yes
Exhaust Airflow @ 0.100 in SP	5,767 cfm
Maximum Ambient Operating Temperature	104 Degrees F
Exhaust Airflow @ 0.125 in SP	5,767 cfm
Vent Design	Ductless
Exhaust Airflow @ 0.375 in SP	4,558 cfm
Exhaust Airflow @ 0.500 in SP	3,223 cfm
Wattage	510 W, 520 W
Includes Dehumidistat	No
Assembled	Assembled
Exhaust Airflow @ 0.250 in SP	5,216 cfm
Guard Finish	Zinc Plated
Guard Type	Intake
Noise Level @ 0.000 in SP @ 5 ft	21 sones
Nameplate Voltage	115/230V AC
Maximum Noise Level	21 sones
Number of Speeds	1
Duct Shape	Round
Speed Controllable	No
Motor Speed	1,134 RPM
Motor Horsepower	1/2 hp
Electrical Connection	Hardwired
Exhaust Airflow @ 0.000 in SP	6,254 cfm
Ventilation Type	Exhaust
Fan Style	Panel

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 24 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 24 1/2 in, Exhaust Airflow @ 0.000 in SP 6,254 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Intake, Includes Dehumidistat No, Maximum Noise Level 21 sones

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
