  11. Belt Drive Mtr, SplitPh, ODP, 1/6HP, 1140rpm
Shop All Split-Phase AC Motors
Dayton

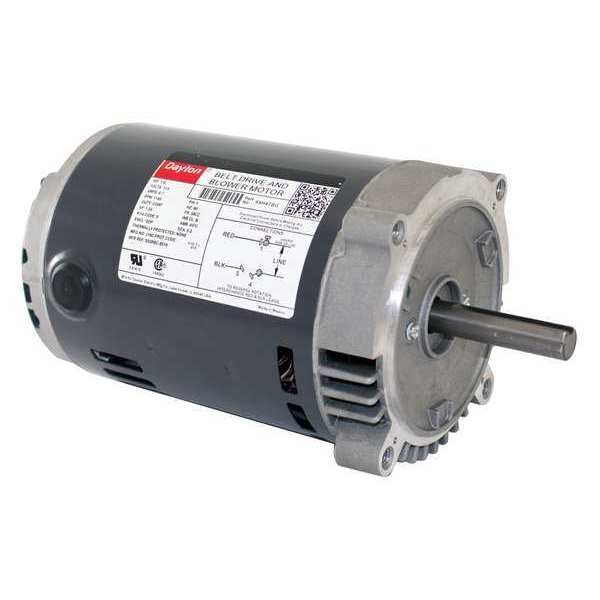

Belt Drive Mtr, SplitPh, ODP, 1/6HP, 1140rpm

original price: $294.91
11% off
new price: $260.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • HP 1/6
  • Duty Continuous
  • Motor Mounting Position All Angle
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Overall Length 10 7/8 in
Manufacturers Warranty Length 1 yr
Shaft Length 2 7/16 in

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/6 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115V AC, 4.7 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in, Shaft Length 2 7/16 in
