Shop All Air Chain Hoists
Dayton

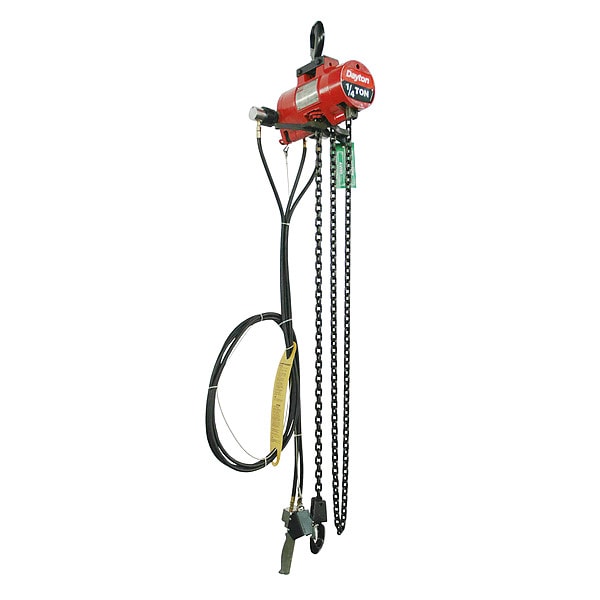

Air Chain Hoist, Cap. 500 lb, 15 ft
Mfr # 816YH8
Zoro # G112101456
Free Shipping & Returns
$2,068.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Chain Length 15 5/8 ft
- Standards ASME B30.16
- Body Material Aluminum
- Number of Reeves 1
- Includes Brake Brake Included
Product Information
- Brand Dayton
- MFR # 816YH8
- Zoro # G112101456
- Country of Origin China
- Category Air Chain Hoists
Dimensions
Chain Length | 15 5/8 ft |
Body Depth | 7 1/2 in |
Maximum Lifting Length | 15 ft |
Body Length | 12 1/8 in |
Body Width | 5 1/2 in |
Lifting Hook Opening Width | 1 3/16 in |
Air Inlet Size | 3/8 in |
Minimum Retracted Length | 15 1/4 in |
Mfr. Warranty Length | 1 yr |
Description
Air Chain Hoist, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 500 lb, Fixed Lift Speed Not Applicable, Air Inlet Type NPT, Controls Pendant, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 15 1/4 in, Maximum Air Pressure 100 psi, Maximum Lifting Length 15 ft, Maximum Air Consumption 78 scfm, Programmable Non-Programmable, Air Inlet Gender Female, Air Inlet Size 3/8 in, Body Depth 7 1/2 in, Body Length 12 1/8 in
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
