Shop All AC Farm Duty Motors
Dayton

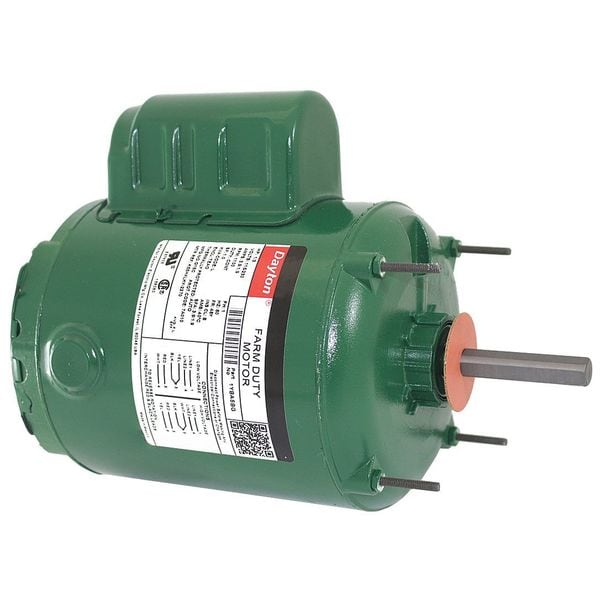

Agricultural Fan Motor, Permanent Split Capacitor, 1/3 HP, 115/230V AC, 1,100 Nameplate RPM
Mfr # 1YBA5BG
Zoro # G2062523
original price:
$256.34
new price: $253.99
/ea
Free Shipping & Returns
$253.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design Permanent Split Capacitor
- Phase Single
- HP 1/3
- RPM Range 1,001-1,100
- Voltage 115/230V AC
Product Information
- Brand Dayton
- MFR # 1YBA5BG
- Zoro # G2062523
- UPC # 190735150269
- Country of Origin Mexico
- Category AC Farm Duty Motors
Dimensions
| Overall Length | 10 3/16 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 1/2 in |
| Length Less Shaft | 7 11/16 in |
Description
Agricultural Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,100, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.9/1.9 A, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel
Restrictions
- WARNING: Cancer For more information go to www.P65Warnings.ca.gov
