  11. Shackle, 7/16 in., 3000 lb.
Shop All Shackles
Crosby

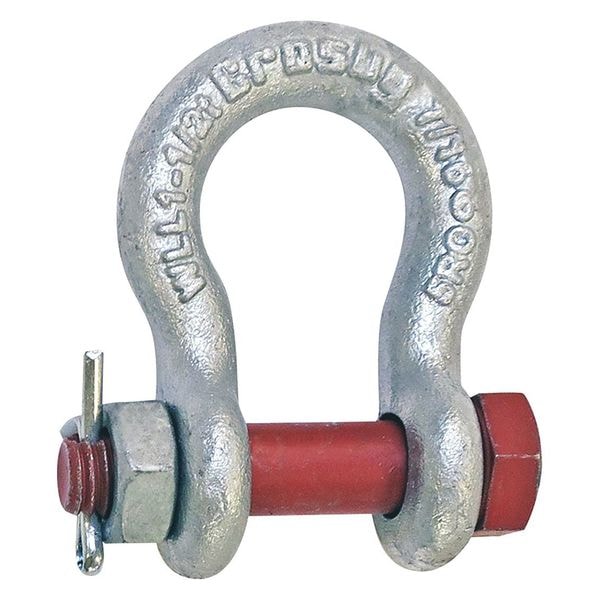

Shackle, 7/16 in., 3000 lb.

original price: $42.15
14% off
new price: $35.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Working Load Limit 3,000 lb
  • Pin Style Bolt, Cotter, Nut
  • Finish Hot Galvanized
  • Width Between Eyes 3/4 in
  • Body Size 7/16 in
See all product information

Product Information

  • Brand Crosby
  • MFR # 1019471
  • Zoro # G2368707
  • Country of Origin United States
  • Category Shackles

Dimensions

Width Between Eyes 3/4 in
Body Size 7/16 in
Pin Dia. 1/2 in
Inside Length 1 3/4 in
Pin Diameter 1/2 in
Inside Width 1 1/8 in

Details

Working Load Limit 3,000 lb
Item Anchor Shackle
Pin Style Bolt, Cotter, Nut
Finish Hot Galvanized
Standards ASME B30.26
Pin Material Alloy Steel
Body Material Carbon Steel
Body Finish Galvanized
Pin Finish Galvanized
Maximum Operating Temperature 400 Degrees F
Shackle Type Anchor Shackle
Pin Color Red
Body Color Silver
Minimum Operating Temperature -40 Degrees F
Lifting Capability For Lifting
Body Thickness 1/2 in
Pin Type Removable Bolt and Nut

Description

Anchor Shackle, Shackle Type Anchor Shackle, Lifting Capability For Lifting, Working Load Limit 3,000 lb, Width Between Eyes 3/4 in, Body Material Carbon Steel, Inside Length 1 3/4 in, Inside Width 1 1/8 in, Body Thickness 1/2 in, Body Color Silver, Body Finish Galvanized, Pin Type Removable Bolt and Nut, Pin Diameter 1/2 in, Pin Material Alloy Steel, Pin Color Red, Pin Finish Galvanized, Minimum Operating Temperature -40 Degrees F, Maximum Operating Temperature 400 Degrees F
