Shop All Shackles
Crosby

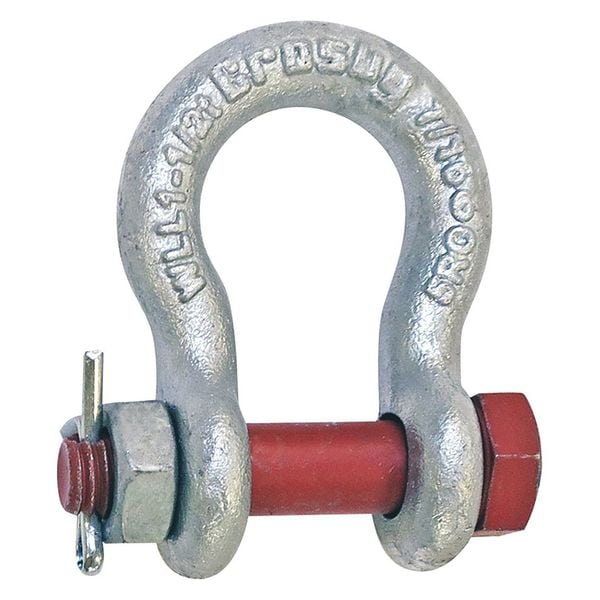

Shackle, 2 in., 70,000 lb.
Mfr # 1019677
Zoro # G2368646
product price: $905.99
/ea
Free Shipping & Returns
$905.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Working Load Limit 70,000 lb
- Body Size 2 in
- Pin Style Bolt, Cotter, Nut
- Finish Hot Galvanized
- Pin Dia. 2 5/16 in
Product Information
Dimensions
Body Size | 2 in |
Pin Dia. | 2 5/16 in |
Width Between Eyes | 3 1/4 in |
Inside Width | 5 3/4 in |
Inside Length | 7 3/4 in |
Pin Diameter | 2 1/4 in |
Details
Item | Shackle |
Working Load Limit | 70,000 lb |
Pin Style | Bolt, Cotter, Nut |
Finish | Hot Galvanized |
Standards | ASME B30.26 |
Pin Material | Alloy Steel |
Body Material | Carbon Steel |
Pin Type | Removable Bolt and Nut |
Pin Color | Red |
Body Color | Silver |
Maximum Operating Temperature | 400 Degrees F |
Lifting Capability | For Lifting |
Shackle Type | Anchor Shackle |
Minimum Operating Temperature | -40 Degrees F |
Pin Finish | Galvanized |
Body Finish | Galvanized |
Body Thickness | 2 in |
Description
Anchor Shackle, Shackle Type Anchor Shackle, Lifting Capability For Lifting, Working Load Limit 70,000 lb, Width Between Eyes 3 1/4 in, Body Material Carbon Steel, Inside Length 7 3/4 in, Inside Width 5 3/4 in, Body Thickness 2 in, Body Color Silver, Body Finish Galvanized, Pin Type Removable Bolt and Nut, Pin Diameter 2 1/4 in, Pin Material Alloy Steel, Pin Color Red, Pin Finish Galvanized, Minimum Operating Temperature -40 Degrees F, Maximum Operating Temperature 400 Degrees F
