Shop All Relief Valves
Cash Acme

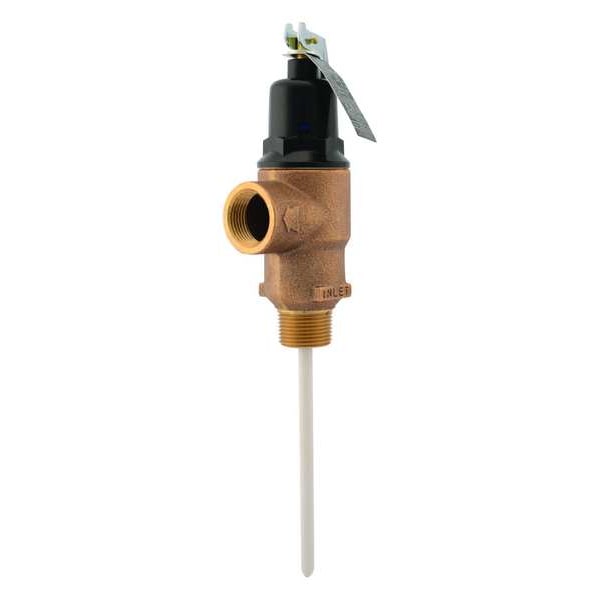

T and P Relief Valve, MNPT x FNPT
Mfr # 16934-0150
Zoro # G3360323
original price:
$101.45
20% off
new price: $80.69
/ea
Free Shipping & Returns
$80.69
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Inlet Size 3/4"
- Outlet Size 3/4"
- Connection Type MNPT x FNPT
- Body Material Bronze
- Outlet Type FNPT
Product Information
- Brand Cash Acme
- MFR # 16934-0150
- Zoro # G3360323
- UPC # 697285002869
- Country of Origin United States
- Category Relief Valves
Dimensions
Inlet Size | 3/4" |
Outlet Size | 3/4" |
Body Height | 6 in |
Shank Length | Standard |
Body Width | 2 1/2 in |
Thermostat Length | 4 3/4 in |
Overall Height | 6" |
Overall Width | 2-1/2" |
Height | 5-31/32" |
Width | 2-1/2" |
Details
Connection Type | MNPT x FNPT |
Body Material | Bronze |
Item | Temperature and Pressure Relief Valve |
Outlet Type | FNPT |
Inlet Type | MNPT |
Factory Set Pressure | 150 psi |
Standards | Certified ANSI Z21.22 And CSA 4.4, Listed By ASME And CSA |
Max. Temp. | 210 Degrees F |
Auto Re-Seating | Yes |
Spring Material | Stainless Steel |
BtuH | 1,912,000 |
Type | Commercial |
Description
Temperature and Pressure Relief Valve, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Thermostat Length 4 3/4 in, Body Height 6 in, 1,912,000 BtuH, Factory Set Pressure 150 psi, Max. Temp. 210 Degrees F, Shank Length Standard, Auto Re-Seating Yes, Body Material Bronze, Spring Material Stainless Steel, Body Width 2 1/2 in, Standards Certified ANSI Z21.22 And CSA 4.4, Listed By ASME And CSA
Restrictions
