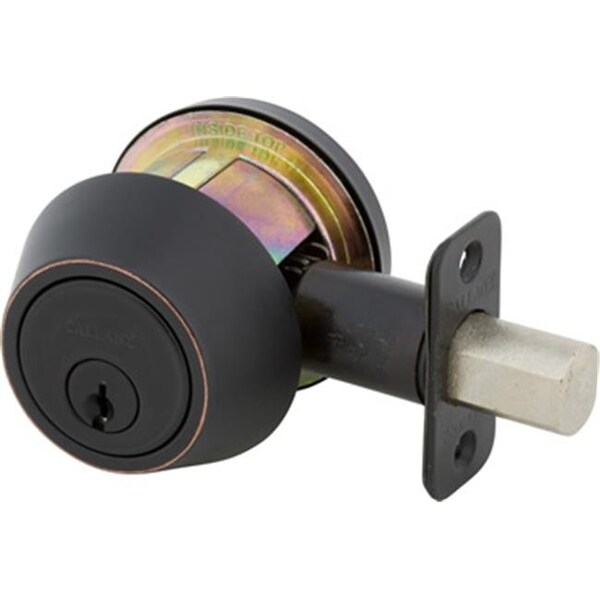

Callan2 G2KA2007 Grade 2 Single Cylinder Deadbolt; Edged Bronze

Single cylinder door handle sets and deadbolts are keyed only on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the mechanism. Single cylinder locks are most commonly used in residential locations due to safety and ease of use. Callan 2's Grade 2 Deadbolts are the height of home security. Designed for ease of use as well as high security.

• Function - Single Cylinder
• Combination Screws that Suit both Wood or Metal Door Mounting
• Heavy Duty All Metal Construction
• Protective Sleeve
• Interlocking Installation Guides
• Reinforced Spring Assembly
• High Security Strike Assembly
• Finish - Edged Bronze
• Item Weight - 1.9 lbs.

• Door Prep
  • Cross bore - 2.12 in.
  • Edge bore - 1 in.
  • Latch face: 1 x 2.25 in.
• Backset Fits - 2.37 and 2.75 in.
• Door Thickness - 1.37 to 1.75 in. door standard
• Cylinder - SC1 5-pin standard; KW1 5-pin optional, Entries packed KA5
• Latches
  • Deadbolt: 2-3/8 in. & 2-3/4 in. adjustable (C9092 R/S)
  • Faceplate: 1 in. x 2-1/4 in. Rd. & Sq. corner
  • Bolt: 1 in. throw with hardened steel rod
• Strikes - 1.75 x 2.25 in. full lip Rod. & Sq. corner. Includes Reinforcement Plate.
• Wood Screws - Combination screws that suit both wood or metal door mounting. Includes 1.5 in. Security Screws.
• Grade 2 Features:
  • Protective collar.
  • Interlocking installation guides.
  • Reinforced spring assembly.
