Shop All Manhole Cover Lifters
Caldwell

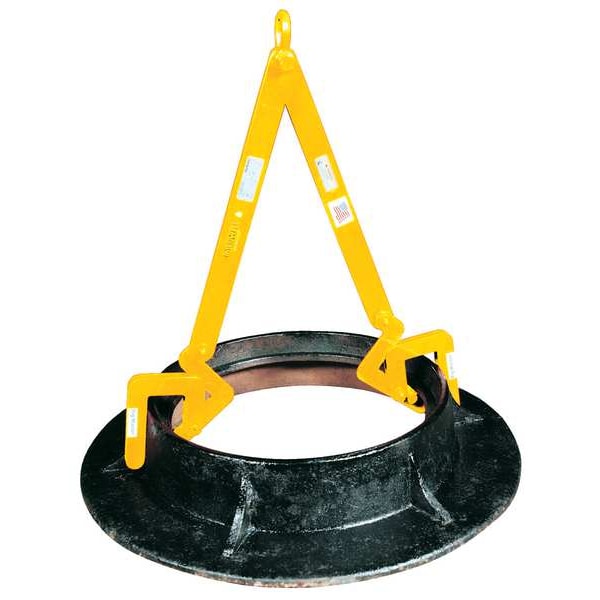

Manhole Sleeve Lifter, Cap1000Lb.
Mfr # MCL - 1/2
Zoro # G6849902
product price: $859.99
/ea
Free Shipping & Returns
$859.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Load Capacity 1,000 lb
- Manhole Frame Opening Diameter 12 in to 30 in
- Clamp Range 0 in to 2-7/8 in
- Headroom 36 5/8 in
- Bail Opening Width 2 3/8 in
Product Information
- Brand Caldwell
- MFR # MCL - 1/2
- Zoro # G6849902
- Country of Origin United States
- Category Manhole Cover Lifters
Dimensions
Manhole Frame Opening Diameter | 12 in to 30 in |
Bail Opening Width | 2 3/8 in |
Bail Opening Height | 3 7/8 in |
Bail Inside Width | 2 3/8 in |
Maximum Manhole Diameter | 30 in |
Minimum Manhole Diameter | 12 in |
Bail Inside Length | 3 7/8 in |
Bail Height | 3/8 in |
Details
Item | Manhole Sleeve Lifter |
Load Capacity | 1,000 lb |
Clamp Range | 0 in to 2-7/8 in |
Headroom | 36 5/8 in |
Material Above the Bail Opening | 3/8 in |
Max. Distance Between Bottom of Manhole Cover Support Flange to Top of Frame | 5-1/2 in |
Standards | ASME |
Product Type | Manhole Sleeve Lifter |
Number of Legs | 2 |
Bail Thickness | 3/8 in |
Maximum Load Thickness | 2 7/8 in |
Working Load Limit | 1,000 lb |
Maximum Headroom | 26 1/4 in |
Description
Manhole Sleeve Lifter, Product Type Manhole Sleeve Lifter, Working Load Limit 1,000 lb, Minimum Manhole Diameter 12 in, Maximum Manhole Diameter 30 in, Maximum Load Thickness 2 7/8 in, Bail Inside Length 3 7/8 in, Bail Inside Width 2 3/8 in, Bail Thickness 3/8 in, Minimum Headroom Not Applicable, Maximum Headroom 26 1/4 in, Number of Legs 2, Bail Height 3/8 in, Standards ASME
