Burndy

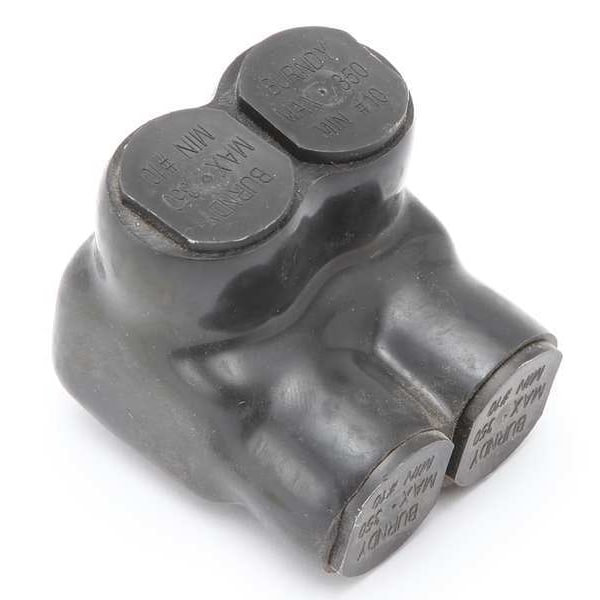

Insulated Multitap Connector, 2.50 In. L
Mfr # 1PL3502
Zoro # G4701627
$43.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Connector Type Single-Sided Entry
- No. of Ports 2
- Min. Conductor Size 10 AWG
- Max. Conductor Size 350 kcmil
- Stud Size 3/16 in
Product Information
- Brand Burndy
- MFR # 1PL3502
- Zoro # G4701627
- UPC # 781810555279
- Country of Origin United States
- Category Mechanical Lugs
Dimensions
Min. Conductor Size | 10 AWG |
Max. Conductor Size | 350 kcmil |
Stud Size | 3/16 in |
Length | 2.5 in |
Width | 2.32 in |
Length (Straight Wireway) | 2.5 in |
For Stranded Copper Wire Size - Minimum | 10 AWG |
Overall Length | 2.47 in |
Hex Size | 5/16 in |
Overall Width | 2.32 in |
Strip Length | 1 1/8 in |
For Stranded Copper Wire Size - Maximum | 350 kcmil |
Wire Size Range | 10 AWG - 350 kcmil |
Conductor Size | 10 AWG-350 KCMIL |
Dimension - L Length Overall mm | 63 |
Dimension - Height inch | 2.50 in |
Conductor - Copper Str Size Range | 10 AWG-350 kcmil |
Dimension - Width fraction | 2-8/25 in |
Dimension - Width mm | 59 mm |
Conductor - AL Str Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil |
Dimension - Height fraction | 2-1/2 in |
Conductor - AL Str Size Range | 10 AWG-350 kcmil |
Dimension - Length Overall inch | 2.47 |
Dimension - Width inch | 2.32 in |
Conductor - Copper Str Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil |
Description
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 350 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL Listed, Compatible with Product Type Code Conductor
