Shop All Hydraulic Gear Pumps
Bucher Hydraulics

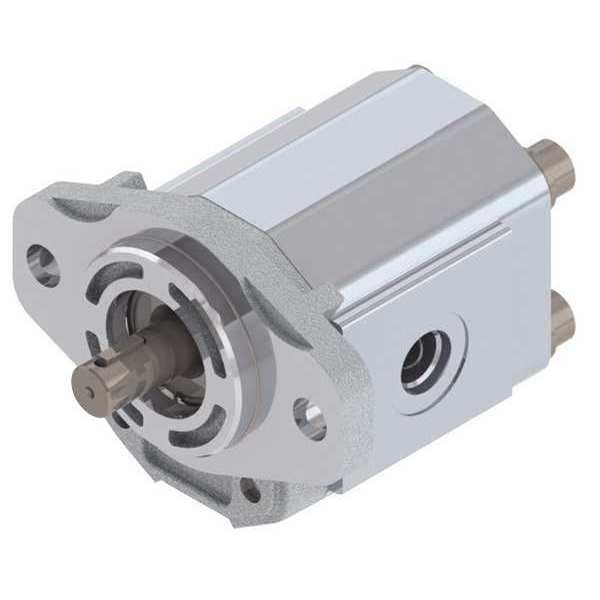

Hydraulic Gear Pump, Cast Iron, 3.66 in.L
Mfr # AP100/235D880
Zoro # G4841798
original price:
$189.99
10% off
new price: $170.99
/ea
Free Shipping & Returns
$170.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Displacement (Cu. In./Rev.) 0.213
- GPM @ 1800 RPM and 1000 PSI 1.56
- GPM @ 3600 RPM and 1000 PSI 3.2
- Max. Continuous PSI 3,000
- Min. RPM 650 RPM
Product Information
- Brand Bucher Hydraulics
- MFR # AP100/235D880
- Zoro # G4841798
- Country of Origin Italy
- Category Hydraulic Gear Pumps
Dimensions
| Width (In.) | 0.26 in |
| Length (In.) | 3.66 in |
| Overall Length | 3.7 in |
| Overall Width | 4 in |
| Discharge Connection Size | 9/16"-18 |
| Media Intake Connection Size | 3/4"-16 |
| Shaft Outer Diameter | 1/2 in |
Description
Hydraulic Gear Pump, Displacement per Revolution 0.213 cu in/rev, Media Intake Connection Size 3/4 In.-16, Discharge Connection Size 9/16 In.-18, Continuous Pressure- Maximum 3,000 psi, Motor Speed - Maximum 5,000 RPM, Motor Speed - Minimum 500 RPM, Shaft Type Spline, Rotation CW, Housing Material Aluminum, Mounting Type 2 Bolt SAE AA, End Cap Material Cast Iron, Media Intake Connection Type UNF, Overall Length 3.7 in, Overall Width 4 in, Shaft Outer Diameter 1/2 in, Wetted Material Steel
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
