Blackburn

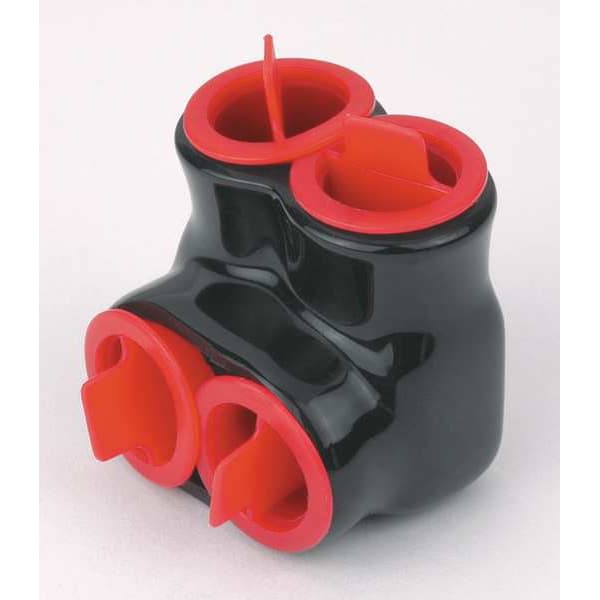

Insulated Multitap Connector, 1.67 In. L

product price: $28.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Single-Sided Entry
  • No. of Ports 2
  • Min. Conductor Size 14 AWG
  • Max. Conductor Size 2/0 AWG
  • Stud Size 3/16 in
See all product information

Product Information

Dimensions

Min. Conductor Size 14 AWG
Max. Conductor Size 2/0 AWG
Stud Size 3/16 in
Length 1.67 in
Width 1.53 in
Length (Straight Wireway) 1.67 in
For Stranded Copper Wire Size - Minimum 14 AWG
Overall Width 1.5 in
Hex Size 3/16 in
For Stranded Copper Wire Size - Maximum 2/0 AWG
Overall Length 1.61 in
For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 2/0 AWG, 4 AWG, 6 AWG, 8 AWG

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material PVC, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, Standards CSA 6591, UL E9809, Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
