  9. Fire & Smoke Actuator, Damper, 180 in-lb
Shop All Actuators and Damper Motors
Belimo

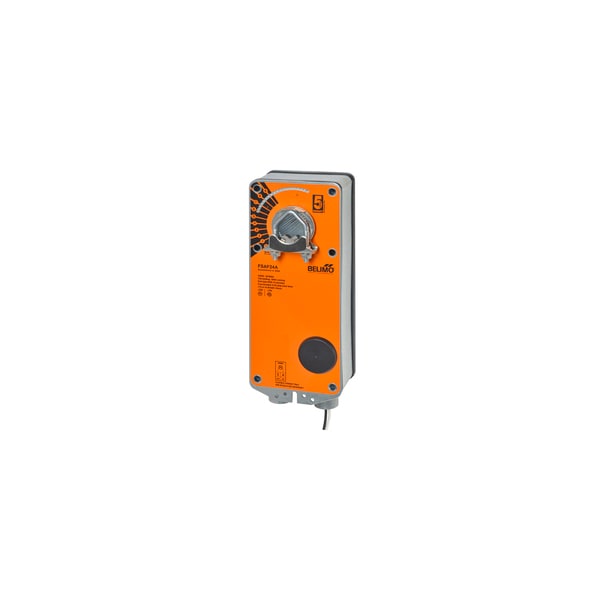

Fire & Smoke Actuator, Damper, 180 in-lb

product price: $504.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Spring Return Spring Return
  • Signal Type On/Off
  • Power Consumption 32 VA
  • Power Rating 5W
  • Input Voltage 24V AC/DC
See all product information

Product Information

Dimensions

Overall Width 3 7/8 in
Overall Height 10 1/4 in
Overall Depth 3 1/2 in

Details

Spring Return Spring Return
Signal Type On/Off
Power Consumption 32 VA
Item Fire and Smoke Actuator
Power Rating 5W
Input Voltage 24V AC/DC
Application Fire and Smoke Dampers
Standards CAN/CSA Certified E60730-1:02, cULus Listed to UL60730-1A:02, EU-Directive 2011/65/EU, ISO 9001, RoHS Compliant, UL Listed 2043, UL Listed 60730-2-14:02
Weight 5.9 lb
Electrical Connection Type Hardwired
Fire Application Rating Fire Application Rated
Shaft Rotation CW/CCW
Stroke Degree 95 Degrees
Plenum Rating Plenum Rated
Number of Auxiliary Switches 0
Minimum Operating Temperature 32 Degrees F
Housing Material Steel
Product Type Fire and Smoke Actuator
Valve Application Damper
NEMA Rating 1
Maximum Operating Temperature 122 Degrees F
IP Rating IP40
Rated Torque 180 in-lb
Smoke Application Rating Smoke Application Rated
Housing Material Finish Galvanized
Time to Close 25 sec

Description

Fire and Smoke Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 180 in-lb, Input Voltage 24V AC/DC, Electrical Connection Type Hardwired, NEMA Rating 1, IP Rating IP40, Spring Return Spring Return, Smoke Application Rating Smoke Application Rated, Fire Application Rating Fire Application Rated, Time to Close 25 sec, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F
