Aro

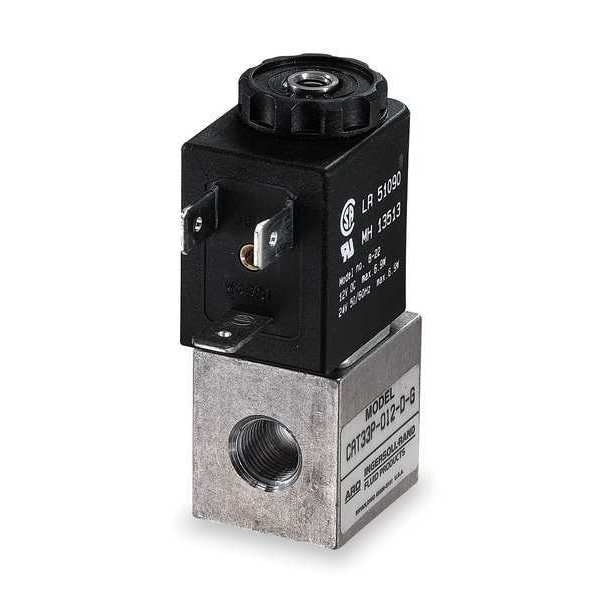

Solenoid Air Control Valve, 1/8 In, 12VDC

product price: $76.79
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 12V DC
  • Power Consumption 4.8 W
  • Standards CSA #LR51090, UL #MH13513
  • CFM 2.2
  • Pipe Size 1/8 in
See all product information

Product Information

Dimensions

Pipe Size 1/8 in
Overall Width 7/8 in
Overall Length 1 5/8 in
Overall Height 2 7/16 in

Details

Voltage 12V DC
Power Consumption 4.8 W
Standards CSA #LR51090, UL #MH13513
CFM 2.2
Normally Open / Normally Closed Normally Closed
Shifting Technology Direct
Item Solenoid Air Control Valve
Valve Actuator / Return Solenoid / Spring
Ambient Temp. Range 0 Degrees to 122 Degrees F
Actuator/Return Solenoid/Spring
Valve Ways and Positions 3-Way/2-Position
Operational Pressure Range 0 to 150 psi
Body Style Body Ported
NEMA Classification NEMA 4
Electrical Connections DIN Connectors
Air Valve Type 3-Way, 2-Position
Max. CFM - Valves 2.2 cfm
Pressure Range 0 to 150 psi
Coefficient of Volume 0.062

Description

Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 12V DC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/8 in, Max. CFM - Valves 2.2 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Normally Closed, Body Style Body Ported, Coefficient of Volume 0.062, DIN Connectors Electrical Connections, Shifting Technology Direct, Power Consumption 4.8 W, Ambient Temp. Range 0 Degrees to 122 Degrees F, Overall Height 2 7/16 in
