Shop All Solenoid Air Control Valves
Aro

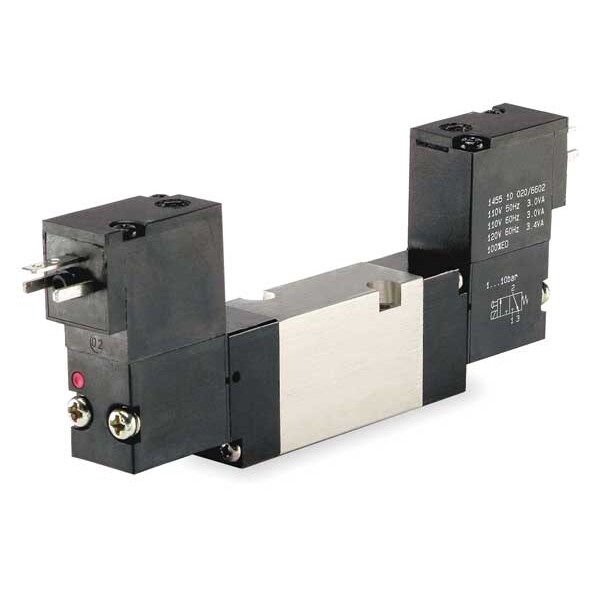

Solenoid Air Control Valve, 120VAC
Mfr # S5DS9C-1
Zoro # G0918723
product price: $176.99
/ea
Free Shipping & Returns
$176.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Valve Ways and Positions 4-Way/2-Position
- Voltage 120V AC
- Valve Actuator / Return Solenoid / Solenoid
- Coefficient of Volume 0.25
- Pipe Size 1/8 in
Product Information
- Brand Aro
- MFR # S5DS9C-1
- Zoro # G0918723
- Country of Origin Taiwan, Province of China
- Category Solenoid Air Control Valves
Dimensions
| Pipe Size | 1/8 in |
| Overall Height | 1 3/4 in |
| Overall Width | 19/32 in |
| Overall Length | 4 31/32 in |
Details
| Item | Solenoid Air Control Valve |
| Valve Ways and Positions | 4-Way/2-Position |
| Voltage | 120V AC |
| Valve Actuator / Return | Solenoid / Solenoid |
| Coefficient of Volume | 0.25 |
| Max. CFM - Valves | 9 cfm |
| Operational Pressure Range | 0 to 115 psi |
| NEMA Classification | NEMA 4 |
| CFM | 9 |
| Body Style | Manifold |
| Shifting Technology | Solenoid/Pilot |
| Electrical Connections | DIN Connectors |
| Actuator/Return | Solenoid/Solenoid |
| Air Valve Type | 4-Way, 2-Position |
| Override | Non-Locking Push |
| Pressure Range | 0 to 115 psi |
| Ambient Temp. Range | 0 Degrees to 122 Degrees F |
Description
Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Solenoid, Pipe Size 1/8 in, Max. CFM - Valves 9 cfm, Operational Pressure Range 0 to 115 psi, NEMA Classification NEMA 4, Body Style Manifold, Coefficient of Volume 0.25, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot, Ambient Temp. Range 0 Degrees to 122 Degrees F, Override Non-Locking Push, Overall Height 1 3/4 in, Overall Length 4 31/32 in
