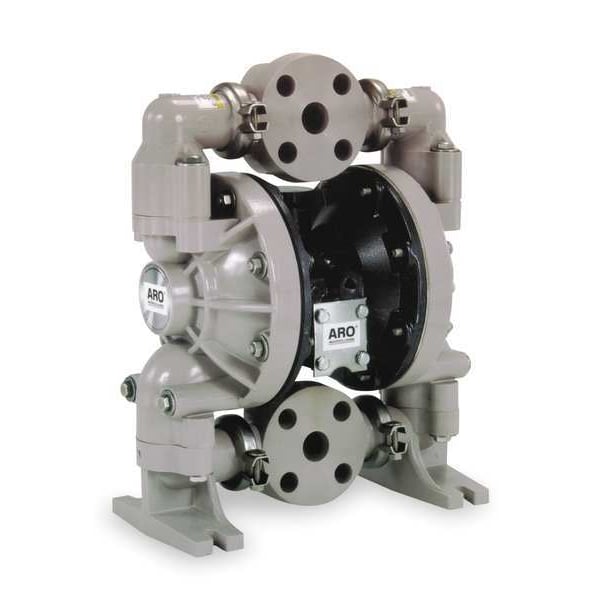

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 139 GPM

Mfr # 6662B3-344-C
Zoro # G2055426

$5,403.60

/ea

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Housing Material - Pumps Polypropylene
Diaphragm Material - Pumps PTFE
Max. Flow 139 gpm
Pump Operation Type Air
Max. Temp - Pumps 150 Degrees F

See all product information

Product Information

Brand Aro
MFR # 6662B3-344-C
Zoro # G2055426
Country of Origin United States
Category Diaphragm Pumps

Dimensions

Inlet/Outlet Size	2 in
Air Inlet Size	1/2 in FNPT
Height	24 5/8 in
Manufacturers Warranty Length	5 yr
Width	11 15/16 in
Max. Dia. Solids	1/4 in
Length	19 23/32 in
Overall Height	26.4 in
Overall Length	17.9 in
Overall Width	23.8 in
Solid Diameter (Maximum)	0.25 in
Air Intake Connection Size	3/4 in
Media Discharge Connection Size	2 in
Media Intake Connection Size	2 in

Details

Housing Material - Pumps	Polypropylene
Diaphragm Material - Pumps	PTFE
Max. Flow	139 gpm
Item - Air Operated Pumps	Double Diaphragm Pump
Pump Operation Type	Air
Max. Temp - Pumps	150 Degrees F
Connection Style	Flange
Agency Compliance	ATEX, CE, REACH, RoHS
Body Material	Polypropylene
Valve Type	Ball
Max. Flow GPM	139 gpm
Ball Material	PTFE
Item	Double Diaphragm Pump
Diaphragm Material	PTFE
Manifold Connection	Single Port
Check Seat Material	Polypropylene
Max. Temp.	150 Degrees F
Self-Priming Dry	10 ft
Operation Type	Air Operated
Max. Operating Pressure	120 psi
Self-Priming Wet	15 ft
Standards	ATEX Certified
Media Discharge Connection Type	Flange
Media Discharge Location	Center, Top
Viscosity (Maximum)	50,000 cps
Media Intake Location	Bottom, Center
Flow Rate @ 40 psi	104 gpm
Manifold Connection Type	Flange
Flow Rate @ 100 psi	135 gpm
Media Temperature (Maximum)	225 Degrees F
Flow Rate (Maximum)	140 gpm
Wetted Housing Material	Polypropylene
Flow Rate @ 90 psi	134 gpm
Feet of Head (Maximum)	289 ft
Air Consumption (Maximum)	140 scfm
Air Intake Connection Type	Flange
Media Temperature (Minimum)	40 Degrees F
Flow Rate @ 70 psi	130 gpm
Non-Wetted Housing Material	Cast Iron
Media Intake Connection Type	Flange
Priming	Self-Priming
Flow Rate @ 120 psi	140 gpm
Series Family	Pro
Pump Assembly Type	Bolt
Series	6662XX
Nameplate Voltage	N
Flow Rate @ 50 psi	117 gpm
Mounting Hardware Material	Steel
Chemical Compatibility	Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Flow Rate @ 60 psi	124.8 gpm
Air Intake Pressure (Maximum)	120 psi
Valve Material	PTFE
Operating Pressure (Maximum)	120 psi
For Use With Potable Systems	Yes
NPSHr	35 ft of head
Flow Rate @ 80 psi	132.5 gpm

Description

Double Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type Flange, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 140 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type Flange, Media Discharge Location Center, Top, Media Intake Connection Size 2 in, Media Intake Connection Type Flange
