  9. Diaphragm Pump, Poly/Poly/Ptfe/Ptfe, 2", 6
Shop All Diaphragm Pumps
Aro

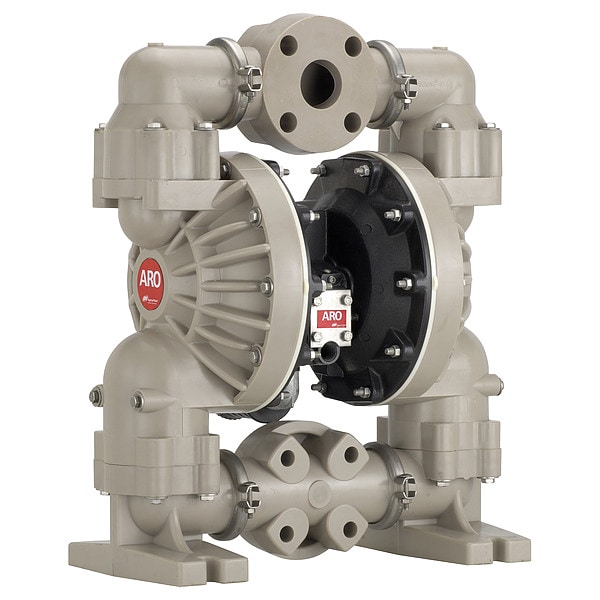

Diaphragm Pump, Poly/Poly/Ptfe/Ptfe, 2", 6

product price: $5,174.10
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Operation Type Air
  • Includes Muffler
  • Standards ANSI S1.13-1971, CAGI-PNEUROP S5.1
  • Valve Type Ball
  • Diaphragm Material PTFE, Santoprene
See all product information

Product Information

Dimensions

Overall Height 26.4 in
Overall Width 22.8 in
Overall Length 17.9 in
Media Intake Connection Size 2 in
Air Intake Connection Size 1/4 in
Media Discharge Connection Size 2 in
Solid Diameter (Maximum) 0.25 in

Description

Diaphragm Pump, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material PTFE, Santoprene, Flow Rate (Maximum) 172 gpm, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPTF, Media Discharge Location Top, Media Intake Connection Size 2 in, Media Intake Connection Type NPTF, Media Intake Location Bottom, Media Temperature (Maximum) 225 Degrees F, Operating Pressure (Maximum) 120 psi, Pump Assembly Type Bolt

Restrictions
