Shop All Steam Traps
Armstrong International

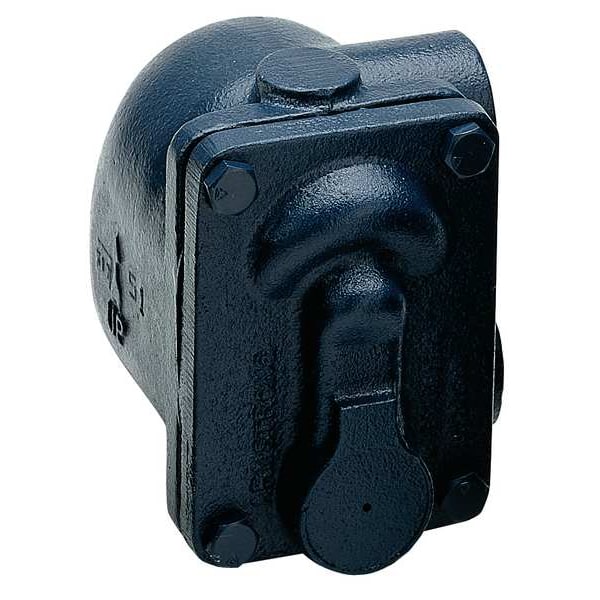

Steam Trap, 30 psi, 353F, 3-7/8 In. L
Mfr # 30B3
Zoro # G4661002
product price: $438.99
/ea
Free Shipping & Returns
$438.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- (F)NPT Connections 3/4 in
- Max. Operating PSI 30 psi
- End to End Length 3 7/8 in
- Condensate Capacity Lbs/Hr 1,400 lb/hr
- Max. Temp. 353 Degrees @ 125 psig
Product Information
- Brand Armstrong International
- MFR # 30B3
- Zoro # G4661002
- Country of Origin United States
- Category Steam Traps
Dimensions
End to End Length | 3 7/8 in |
Overall Width | 5 3/8 in |
Overall Length | 3 7/8 in |
Port Connection Size | 3/4 in |
Overall Depth | 4 7/8 in |
Description
Steam Trap, Air Vent Material Bronze/Stainless Steel, Allowable Pressure - Maximum 125 psi, Allowable Temperature - Minimum Not Applicable, Application Steam Mains, Body Material Cast Iron, Condensate Capacity 1,400 lb/hr, Configuration C Pattern, Distance Between Inlet and Outlet Port 2 3/4 in, Float Material Cast Iron, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Manufacturer Series B
