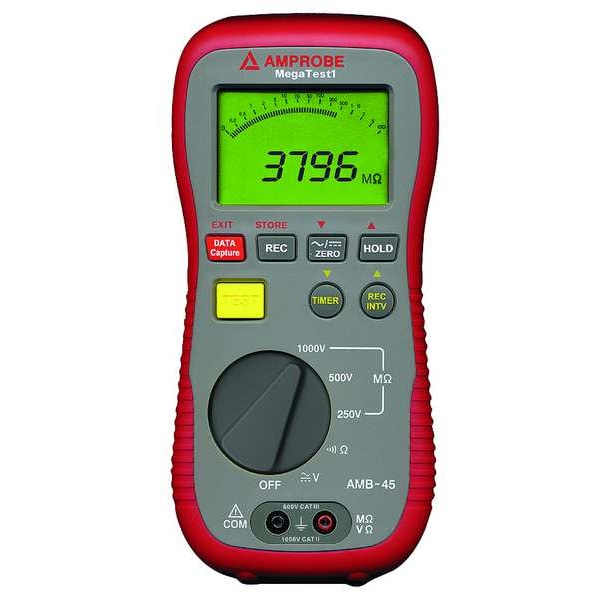

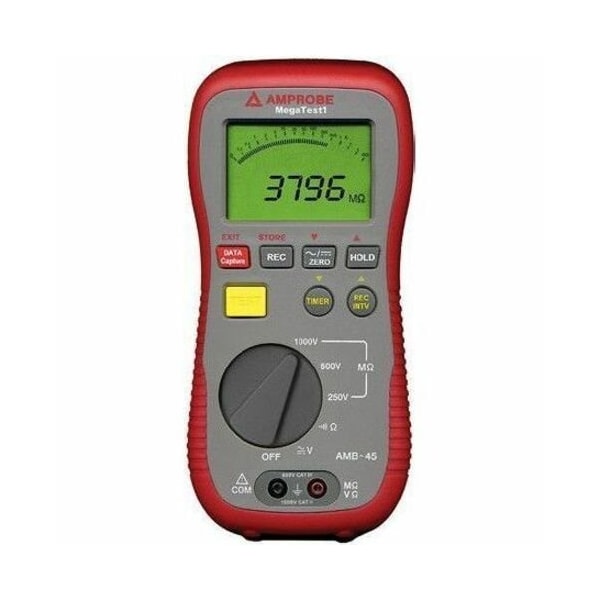

Battery Operated Megohmmeter, 1000VDC

Mfr # AMB-45
Zoro # G3402865

$768.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Output Test Voltage 250/500/1000V DC
Insulation Resistance Range 40 megaohm to 4 gigohm
Live Circuit Detection 0 to 600V AC/V DC
Accuracy 0 to 2000M Ohms +/-3% of Reading +/-5 Digits, 2001M Ohms to 4000M Ohms +/-5% of Reading +/-5 Digits
Resistance Range 0 to 4000 ohm

See all product information

Product Information

Brand Amprobe
MFR # AMB-45
Zoro # G3402865
UPC #
095969366120
Country of Origin Taiwan, Province of China
Category Megohmmeters

Dimensions

Manufacturers Warranty Length	1 yr
Battery Size	AA
Manufacturer Warranty Length	1 yr

Details

Item	Megohmmeter
Output Test Voltage	250/500/1000V DC
Insulation Resistance Range	40 megaohm to 4 gigohm
Live Circuit Detection	0 to 600V AC/V DC
Accuracy	0 to 2000M Ohms +/-3% of Reading +/-5 Digits, 2001M Ohms to 4000M Ohms +/-5% of Reading +/-5 Digits
Resistance Range	0 to 4000 ohm
Display	Digital LCD
Features	Built-In Voltmeter, Comes as a Complete Kit Including Test Leads and PC Software, Data Download to PC, Fast and Easy-to-Use, Rugged Durable Design, Internal Memory to Store Measurements for Future Reference, Programmable Timer to Perform the Dielectric Absorption Ratio Test, Sensitive Ohmmeter for Checking Resistance of Motor Windings, Tests Insulation of Wires, Cables, Transformers and Electrical Motors
Power Source	Battery
Includes	Carrying Case, Software and Download Cable, Test Leads
Safety Rating	Cat III 600V
Auto Power Off	Yes
Data Logging	4000 Data Points
Auto Ranging	Yes
Interface	RS-232
Calibration Certificate	None
Parameters Measured	Insulation Resistance
CAT Safety Rating	CAT III 600V
Display Type	Digital
Communication Protocol	RS-232
Test Voltage	1,000V DC, 250V DC, 500V DC
Minimum Insulation Resistance	40 megaohm
Waterproof	No
Dustproof	No
Remote Test Probe Included	No
Timed Ramp Voltage Test	Yes
Includes Software	Yes
Greater Than 30V Warning	Yes
Insulation Limit Alarm	No
USB Data Download Included	Yes
Includes Batteries	Yes
Insulation Resistance Resolution	4 megaohm, 40 megaohm, 400 megaohm, 4000 megaohm
Number of Batteries Required	8
Number of Records Stored	4,000
Display Screen Type	LCD
Maximum AC Voltage Measured	600 V
Testing Functions	Insulation
Capacitance Auto Discharge	Yes
Data Logger	Yes
PI/DAR Testing	No
Bluetooth Compatible	No
Maximum Insulation Resistance	4 gigohm
Pass/Fail Selection Limits	No
Maximum DC Voltage Measured	600 V
Operating Voltage	600V
Resistance Accuracy	+/-1.00% + 3 digits
Backlit Digital Display	No

Description

Megohmmeter, Backlit Digital Display No, Bluetooth Compatible No, CAT Safety Rating CAT III 600V, Calibration Certificate None, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes Carrying Case, Software and Download Cable, Test Leads, Insulation Limit Alarm No, Maximum Insulation Resistance 4 gigohm, Minimum Insulation Resistance 40 megaohm, PI/DAR Testing No, Parameters Measured Insulation Resistance, Pass/Fail Selection Limits No
