Ametek

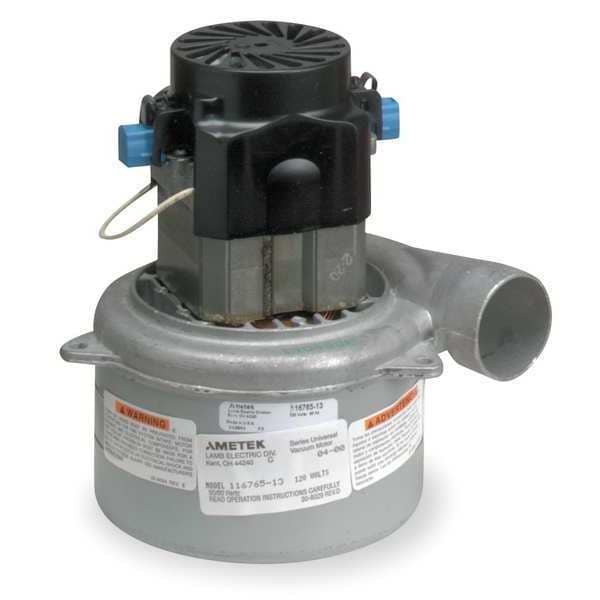

Vacuum Motor/Blower, Tangential, 3 Stage, 1 Speed, Acustek

product price: $169.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Discharge Tangential Bypass
  • Body Dia. 5.7 in
  • Voltage 120V AC
  • Blower Stages 3
  • CFM @ 2-In. Orifice 95.3 cfm
See all product information

Product Information

Dimensions

Body Dia. 5.7 in
Overall Height 5 25/32 in
Overall Length 8 1/16 in
Inlet Tube Dia. 1 7/8 in

Description

Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 25,312, No. of Speeds 1, 120V AC Voltage, Full Load Amps 12.6, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 13.1 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 465 W, Vacuum Rating 136, CFM @ 2-In. Orifice 95.3 cfm
