Shop All Straight Center Discharge Pumps
American Stainless Pumps

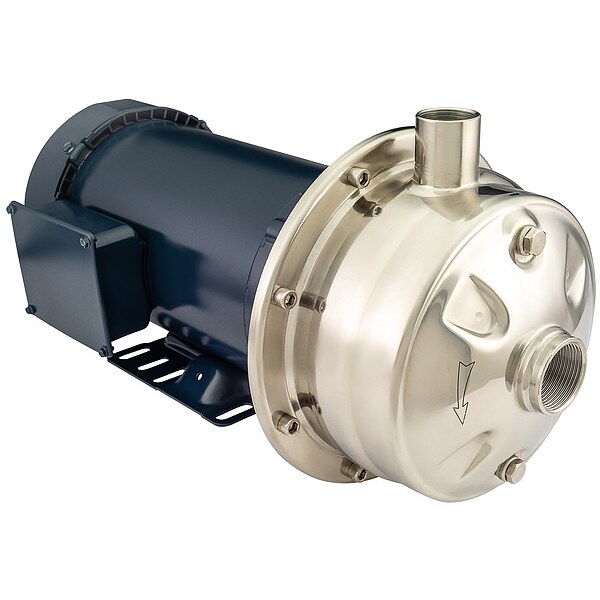

Centrifugal Pump, 208 to 230/460VAC, SS
Mfr # T1525243T3F
Zoro # G600719736
product price: $1,621.99
/ea
Free Shipping & Returns
$1,621.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Discharge Pump Type Centrifugal Pump
- HP - Pumps 3 hp
- Phase - Pumps 3
- Voltage - Pumps 208 to 230/460VAC
- Max. Pressure - Pumps 208 ft of head
Product Information
- Brand American Stainless Pumps
- MFR # T1525243T3F
- Zoro # G600719736
- Country of Origin United States
- Category Straight Center Discharge Pumps
Dimensions
Inlet Size - Pumps | 1.25 in NPT |
Outlet Size - Pumps | 1 in NPT |
Height | 10 1/10 in |
Width | 9 1/5 in |
Diameter | 9 1/5 in |
Manufacturers Warranty Length | 1 yr |
Max. Dia. Solids | 3/40 in |
Length | 18 3/10 in |
Overall Width | 9.2 in |
Overall Height | 10.1 in |
Compatible Discharge Pipe Size | 5 1/4 in |
Compatible Intake Pipe Size | 1 1/4 in |
Solid Diameter (Maximum) | 0.08 in |
Overall Length | 18.3 in |
Description
Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 3 hp, Nameplate Voltage 208-230/460V AC, Maximum Feet of Head 208 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 5 1/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 48 gpm, Flow Rate @ 120 ft of Head (Maximum) 48 gpm, Flow Rate @ 140 ft of Head (Maximum) 42 gpm, Flow Rate @ 160 ft of Head (Maximum) 33 gpm
Restrictions
- *** This is a restricted item. It cannot be used in the USA for potable water applications.
