Shop All Hydraulic Motor Oil Coolers
Akg

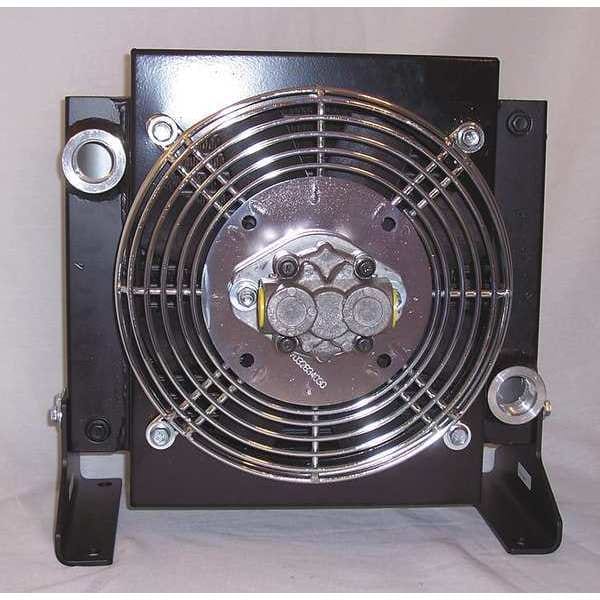

Oil Cooler, w/Hydraulic Motor, 4-50 GPM
Mfr # HR20-0218
Zoro # G3419132
product price: $1,036.99
/ea
Free Shipping & Returns
$1,036.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Type Gear
- Coolant Port Size SAE #16
- Min. Oil Pressure (PSI) 500
- Fan Blade Material Polypropylene
- Finish Black Painted
Product Information
- Brand Akg
- MFR # HR20-0218
- Zoro # G3419132
- Country of Origin United States
- Category Hydraulic Motor Oil Coolers
Dimensions
| Coolant Port Size | SAE #16 |
| Height (In.) | 15.91 |
| Oil Port Size (SAE) | #8 |
| Width (In.) | 15.75 |
| Depth (In.) | 10 |
| Overall Depth | 10.0 in |
| Overall Height | 15.91 in |
| Outlet Port Thread Size | SAE #16 |
| Motor Port Size | SAE #8 |
| Inlet Port Thread Size | SAE #16 |
| Overall Width | 15.75 in |
Description
Forced Air Oil Cooler, HP Heat Removed 20 hp, Max. Flow 50 gpm, Max. Pressure 377 psi, Motor Flow Rate 3.6 gpm, Motor Port Size SAE #8, Inlet Port Thread Size SAE #16, Inlet Port Thread Gender Female, Outlet Port Thread Size SAE #16, Outlet Port Thread Gender Female, Flow Range 4 to 50 gpm, Min. Motor Oil Pressure 500 psi, Max. Motor Oil Pressure 2,000 psi, Hydraulic Motor Type Gear, Hydraulic Motor Displacement 0.218 cu in, Max. Operating Temp. 250 Degrees F, Oil Cooler Material Aluminum
