Acorn Controls

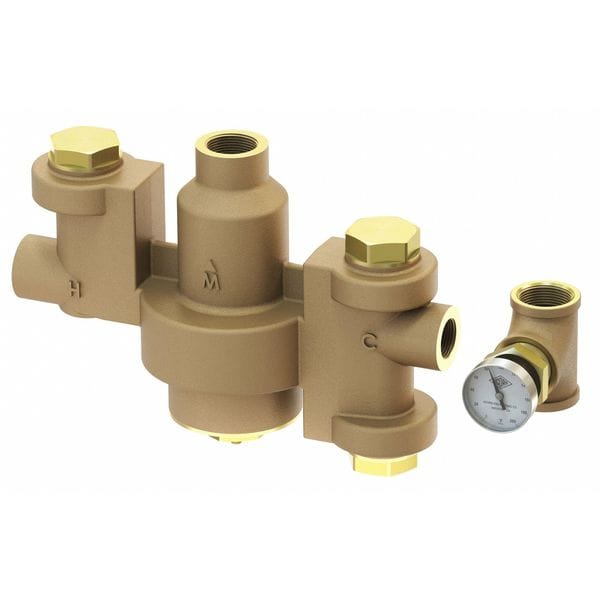

Thermostatic Mixing Valve, 3/4" Inlet Sz

product price: $1,018.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Brass
  • Flow Rate 43 gpm
  • Inlet Type NPT
  • Outlet Type NPT
  • Inlet Size 3/4 in
See all product information

Product Information

Dimensions

Inlet Size 3/4 in
Outlet Size 1 in
Overall Height 5 7/8 in
Overall Width 8 1/2 in
Connection Size - Inlet 3/4 in
Connection Size - Outlet 1 in

Details

Item Thermostatic Mixing Valve
Body Material Brass
Flow Rate 43 gpm
Inlet Type NPT
Outlet Type NPT
Temp. Range 60 Degrees to 95 Degrees F
Max. Pressure 125 psi
Standards ANSI Z358, ASSE 1017
Compliance ASSE 1071, CSA B125.3, Lead Free, UPC
Inlet Temperature (Cold) 40 Degrees to 85 Degrees F
Includes Temperature Gauge
For Use With Drench Shower, Eye and Face Wash Emergency Equipment
Inlet Temperature (Hot) 125 Degrees to 185 Degrees F
Series ET71

Description

Thermostatic Mixing Valve, Body Material Brass, Flow Rate 43 gpm, Inlet Type NPT, Outlet Type NPT, Inlet Size 3/4 in, Outlet Size 1 in, Temp. Range 60 Degrees to 95 Degrees F, Max. Pressure 125 psi, Overall Height 5 7/8 in, Overall Width 8 1/2 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 125 Degrees to 185 Degrees F, For Use With Drench Shower, Eye and Face Wash Emergency Equipment, Includes Temperature Gauge, Standards ANSI Z358, ASSE 1017
