Acorn Controls

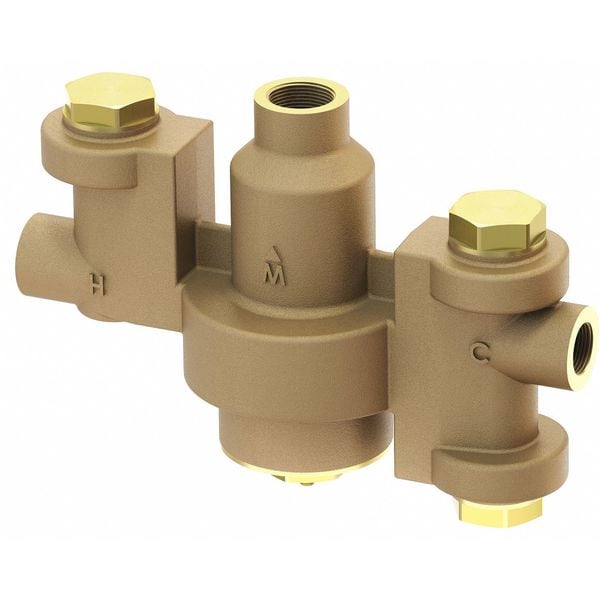

Thermostatic Mixing Valve, 1" Inlet Size
Mfr # ET71-3
Zoro # G4430312
product price: $1,110.99
/ea
Free Shipping & Returns
$1,110.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Body Material Brass
- Flow Rate 86 gpm
- Inlet Type NPT
- Outlet Type NPT
- Inlet Size 1 in
Product Information
- Brand Acorn Controls
- MFR # ET71-3
- Zoro # G4430312
- UPC # 883232425977
- Country of Origin United States
- Category Mixing Valves
Dimensions
| Inlet Size | 1 in |
| Outlet Size | 1 1/4 in |
| Overall Height | 9 3/4 in |
| Overall Width | 14 in |
| Connection Size - Outlet | 1 1/4 in |
| Connection Size - Inlet | 1 in |
Details
| Item | Thermostatic Mixing Valve |
| Body Material | Brass |
| Flow Rate | 86 gpm |
| Inlet Type | NPT |
| Outlet Type | NPT |
| Temp. Range | 60 Degrees to 95 Degrees F |
| Max. Pressure | 125 psi |
| Standards | ANSI Z358, ASSE 1017 |
| Inlet Temperature (Hot) | 125 Degrees to 185 Degrees F |
| Compliance | ASSE 1071, CSA B125.3, Lead Free, UPC |
| Inlet Temperature (Cold) | 40 Degrees to 85 Degrees F |
| For Use With | Combination Shower, Eye and Face Wash Emergency Equipment |
| Series | ET71 |
Description
Thermostatic Mixing Valve, Body Material Brass, Flow Rate 86 gpm, Inlet Type NPT, Outlet Type NPT, Inlet Size 1 in, Outlet Size 1 1/4 in, Temp. Range 60 Degrees to 95 Degrees F, Max. Pressure 125 psi, Overall Height 9 3/4 in, Overall Width 14 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 125 Degrees to 185 Degrees F, For Use With Combination Shower, Eye and Face Wash Emergency Equipment, Standards ANSI Z358, ASSE 1017
