1FT 50A 14-50 Piggy-Back Plug with 6-20R Connector Adapter Cord
Mfr # PB1450620
Zoro # G010828219
product price: $58.79
/ea
$58.79
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 250 V
- Wire Size 10 AWG
- Color Orange
- Watts 5000W
- Max. Amps 20 A
Product Information
- Brand Ac Works
- MFR # PB1450620
- Zoro # G010828219
- UPC # 819145025546
- Country of Origin China
- Category Power Cables
Dimensions
Wire Size | 10 AWG |
Details
Voltage | 250 V |
Color | Orange |
Watts | 5000W |
Max. Amps | 20 A |
Material | PVC |
Male Plug Configuration | NEMA 14-50 |
Female Connector Configuration | NEMA 6-20 |
Cable Jacket Designation | STW |
Description

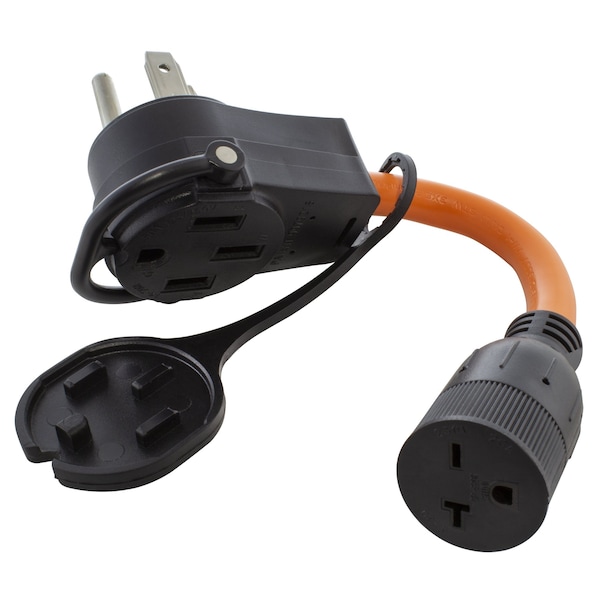

This AC WORKS brand piggy-back adapter PB1450620 is heavy-duty with a 1-foot length. This cord is a NEMA 14-50P and 14-50R to NEMA 6-20R. The NEMA 14-50P is a 50 Amp, 4-prong RV/generator/range male plug. The backside of this plug comes with a matching NEMA 14-50R connector. With this, you can use a variety of power solutions in addition to the female end. The female end of this cord is a NEMA 6-15/20R, 15/20 Amp, 250 Volt, T-blade connector. Using the piggy-back function, you can run multiple appliances from a NEMA 14-50 outlet, as long as it doesnt exceed 50 Amps.The cable is an STW, 10/3, 30 Amp copper wire with 600 Volt anti-cold weather cable staying flexible in extreme temperatures. The cord is super durable and typically used with residential applications, generators, and workshops.
