Shop All Wire Disconnects
3M
Male Disconnect, Red, 22-18AWG, PK1000
Mfr # MNG18-250DMIK
Zoro # G5543544
Free Shipping & Returns
$646.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Insulation Full
- Insulation Color Red
- Wire Range 22 to 18 AWG
- Insulation Type Nylon
- Connection Type Crimp
Product Information
- Brand 3M
- MFR # MNG18-250DMIK
- Zoro # G5543544
- UPC # 00054007023029
- Country of Origin United States
- Category Wire Disconnects

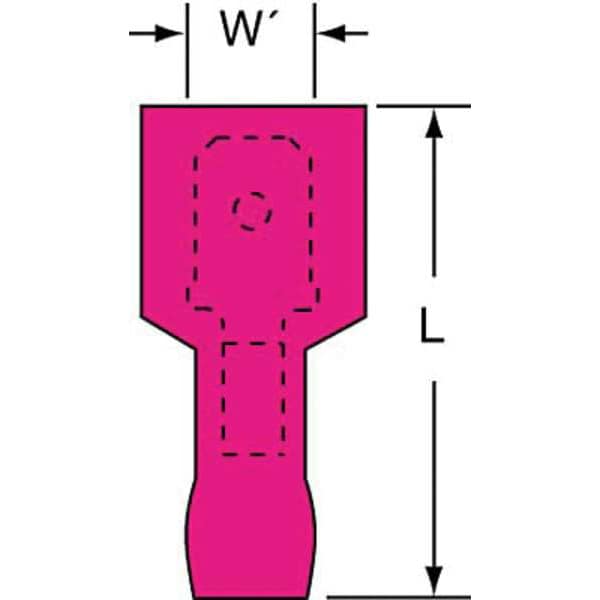

Dimensions
Tab Size | 0.032 in x 0.250 in |
Overall Length | 0.95 in |
Barrel Inside Dia. | 0.065 in |
Overall Length (Imperial) | 0.95 in |
Barrel Length (Imperial) | 0.25 Inch |
Connection Width (Metric) | 6.35 mm |
Pad Width | 0.25 in |
Connection Width (Imperial) | 0.25 in |
Overall Width (Imperial) | 0.44 in |
Overall Diameter (Imperial) | 0.3 in |
Maximum Conductor Size | 18 AWG |
Barrel Inside Diameter | 0.145 Inch |
Tab Width | 0.25 |
Diameter (D) | 0.3 Inch |
Minimum Conductor Size | 22 AWG |
Male Tab Width (W') | 0.25 Inch |
Conductor Size | 22 - 18 AWG |
Description
Male Disconnect, Insulation Color Red, Terminal Type Disconnect, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Nylon, Overall Length 0.95 in, Package Quantity 1000
