Shop All Wire Disconnects
3M
Male Disconnect, Bare, PK500
Mfr # MA250DM/6RRK
Zoro # G5513234
product price: $66.19
/pk 500, $0.13/ea
$66.19
Delivery to commercial address only
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Insulation None
- Insulation Color Bare
- Insulation Type Non-Insulated
- Connection Type #6 Ring to Male Tongue Adapter
- Tab Size 0.032 in x 0.250 in
Product Information
- Brand 3M
- MFR # MA250DM/6RRK
- Zoro # G5513234
- UPC # 00054007022251
- Country of Origin United States
- Category Wire Disconnects

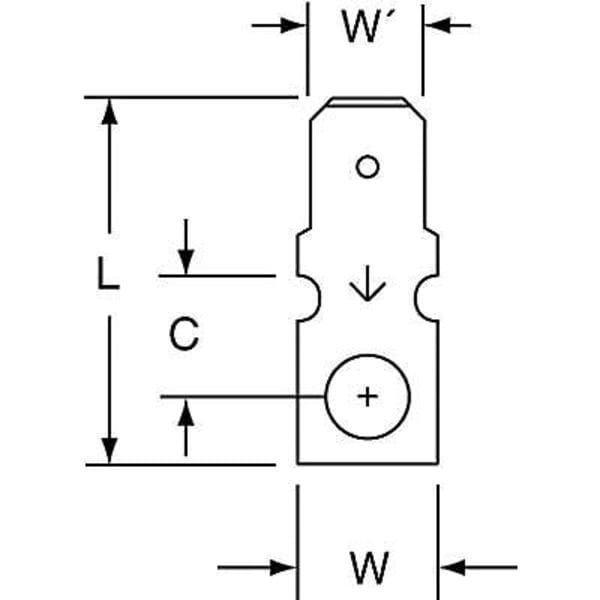

Dimensions
Tab Size | 0.032 in x 0.250 in |
Overall Length | 0.8 in |
Barrel Inside Dia. | 0.08 in |
Barrel Inside Diameter | 0.08 in |
Tab Width | 0.25 in |
Description
Male Disconnect, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 347 Degrees F, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.08 in, Insulation Type Non-Insulated, Minimum Operating Temperature 347 Degrees F, Overall Length 0.8 in, Package Quantity 500
