3M
Female Disconnect, Yellow, 12to10AWG, PK500
Mfr # MNI10-250DFIK
Zoro # G5530271
product price: $316.99
/pk 500, $0.63/ea
Free Shipping & Returns
$316.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Insulation Full
- Insulation Color Yellow
- Insulation Type Nylon
- Wire Range 12 to 10 AWG
- Connection Type Crimp
Product Information
- Brand 3M
- MFR # MNI10-250DFIK
- Zoro # G5530271
- UPC # 00054007695738
- Country of Origin United States
- Category Wire Disconnects
Dimensions

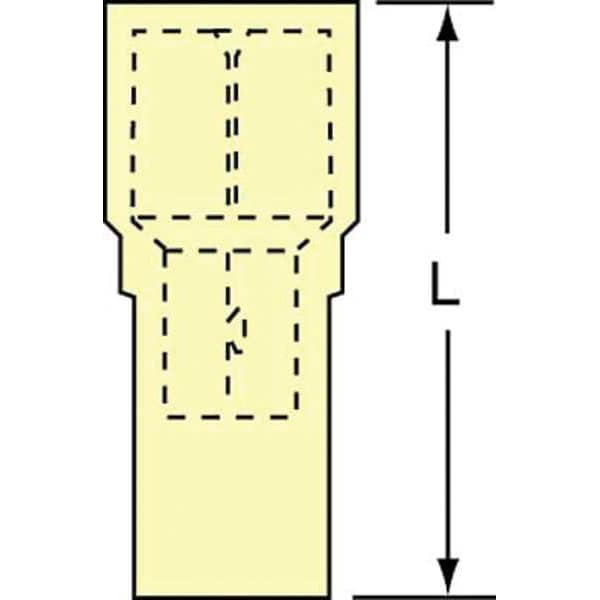

Overall Length | 0.99 in |
Tab Size | 0.032 in x 0.250 in |
Barrel Inside Dia. | 0.128 in |
Barrel Size | Standard |
Barrel Outside Diameter | 0.145 in |
Barrel Inside Diameter | 0.128 in |
Minimum Wire Size | 12 AWG |
Maximum Wire Size | 10 AWG |
Tab Width | 0.25 in |
Mates with Female Width | 0.25 in |
Male Tab Width (W') | 0.250 in |
Mates with Male Tab Width (W') | 0.25 in |
Barrel Length | 0.25 in |
Description
Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Yellow, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.128 in, Barrel Outside Diameter 0.145 in
